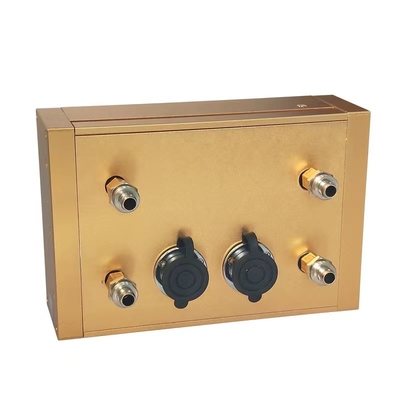

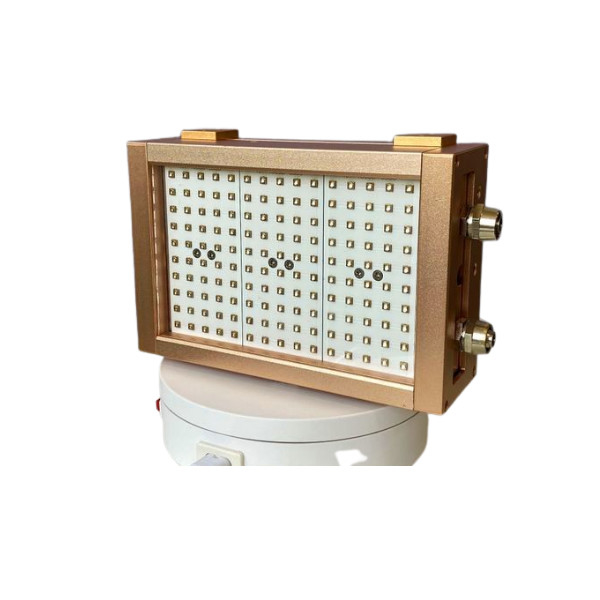

High-Intensity Water-Cooled UV LED Curing System, Industrial UV LED Solution for Printing, Coating and Adhesive Applications

Increase production efficiency with a high-power water-cooled UV LED curing system engineered for demanding industrial environments.

Designed for continuous 24/7 operation, this system delivers outstanding UV intensity, excellent thermal stability, and reliable curing performance across printing, coating, adhesive bonding, electronics, and industrial manufacturing.

Whether you are replacing traditional mercury lamps or integrating a new UV LED production line, this system provides higher efficiency, lower operating costs, and superior process control.

• ✓ Peak irradiance up to 18W/cm²
• ✓ Stable UV output during continuous operation
• ✓ Instant ON/OFF with no warm-up time
• ✓ No mercury, ozone or infrared radiation
• ✓ Low operating temperature
• ✓ Energy saving compared with mercury lamps
• ✓ Long LED lifetime up to 20,000 hours
• ✓ OEM & ODM customization available



Every production line is different.

We provide customized solutions including

• Irradiation length
• Emitting window width
• Peak intensity
• Wavelength selection
• Cooling configuration
• Mounting brackets
• Communication protocol
• Control cabinet
• OEM branding

From prototype development to large-scale production, our engineering team supports complete UV curing system integration.

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2: LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5years.

Q8: Is continuous production supported?

A8: Yes. The water-cooled thermal management system is specifically designed for continuous industrial operation with stable UV output.

Q9: Can this UV LED system replace mercury lamps?

A9: Yes. For many printing, coating and adhesive curing applications, UV LED technology provides higher energy efficiency, instant operation and lower maintenance.
