6000W High-Power Water-Cooled UV LED Curing System with 18W/CM2 UV Intensity for Screen Printing

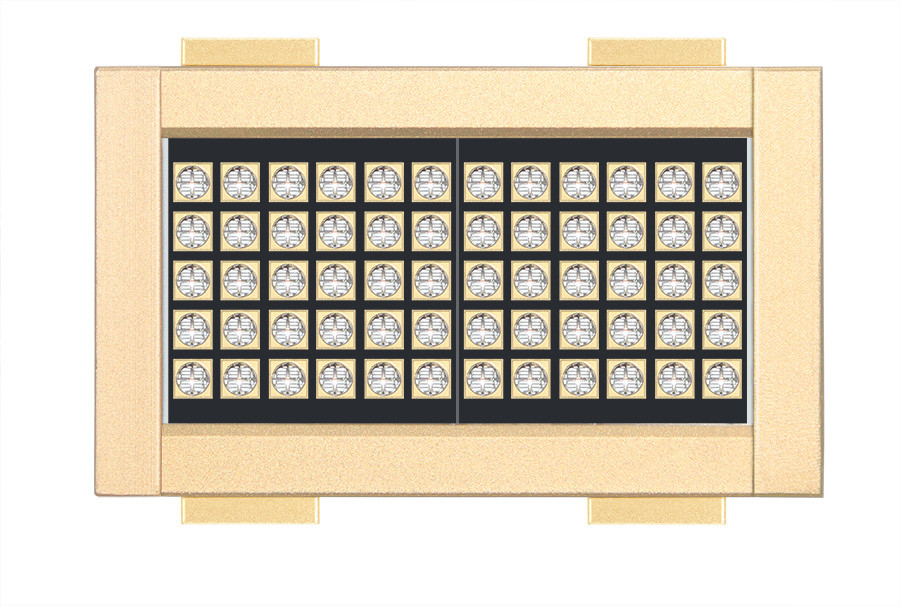

Large Image : 6000W High-Power Water-Cooled UV LED Curing System with 18W/CM2 UV Intensity for Screen Printing

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT10-1000*45-6000A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	8000-9500usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

6000W High-Power Water-Cooled UV LED Curing System with 18W/CM2 UV Intensity for Screen Printing

Description

Keyword:	UV Curing Solution	Power:	6000W
Input Voltage:	AC85-265V	Wave Length:	365nm/385nm/395nm/405nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	18W/CM2 Curing Machine For Screen Printing , 6000W UV Adhesive Curing Equipment , No ozone UV Adhesive Curing Equipment

Industrial UV LED Curing System for Screen Printing

High-Power Water-Cooled UV Ink Curing Machine

Our Industrial UV LED Curing System is engineered for high-speed screen printing lines, delivering instant curing of UV inks, UV coatings, UV varnishes and UV adhesives. Compared with traditional mercury lamps, the system provides higher energy efficiency, lower operating temperature, instant ON/OFF capability and maintenance-free operation.

Designed for continuous industrial production, this UV LED curing machine is widely used in:

Plastic screen printing
Glass decoration printing
Metal panel printing
Electronic component printing
Packaging printing
Label printing
Industrial graphics

Available wavelengths include 365nm, 385nm, 395nm and 405nm with customized irradiation widths to match different printing machines.

Technical Specifications

Model	CG-CT10-1000*45-6000A/C	Lamp Color	Rose Golden
Power	6000W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Method	Water cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden case

System Advantages

Energy-saving - normally 1000W LED UV equals 6000W mercury lamp drying effect
Environment friendly - No mercury, no ozone production, and VOC discharge
No warm-up - turns on/off instantly
Low temperature - can be used for PE and film ink curing
Long lifespan - 20,000 hours
Intelligent Power Control - 0-100% adjustable output, PLC communication available

Frequently Asked Questions

Q1: What's the wavelength of the LED UV lamp?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machines, while 365nm is for adhesives.

Q2: What's your LED brand?

A2: LG/Seoul

Q3: What's the material of lamp and lens?

A3: Aluminium/quartz

Q4: What's the cooling method for the LED UV curing system?

A4: Water or air cooling

Q5: Can the UV intensity be changed?

A5: Yes, the UV intensity is changeable from 0%-100%

Q6: What's the maximum energy of the UV LED lamp?

A6: It depends on emitting time - the longer the duration, the higher the total energy output.

Q7: What's the lifespan of the UV LED curing lamp?

A7: Our warranty is 2 years for all systems (chiller/power supply), with most units reaching 5 years.

Q8: Which wavelength is best for UV screen printing?

A8: 395nm is the most widely used wavelength for UV screen printing inks, while 365nm is suitable for many UV adhesives and specialty materials.
