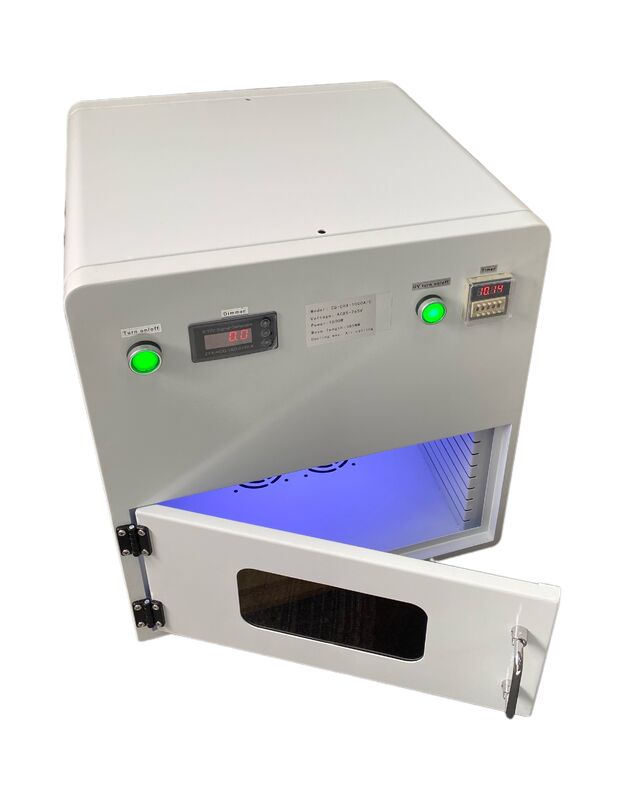

Industrial UV LED Curing Chamber for Endoscope & Hearing Aid Manufacturing
Precision UV Adhesive Curing Solution for Medical Device Assembly
The Super Curing Industrial UV LED Curing Chamber is designed to provide high-precision, low-temperature UV curing for the assembly of medical endoscopes, hearing aids, cochlear implant components, and other miniature medical devices. Equipped with advanced UV LED technology, the system delivers uniform UV irradiation, programmable curing parameters, and stable energy output to ensure reliable bonding without damaging delicate medical-grade materials.
Compared with conventional mercury UV systems, the Super Curing UV LED Chamber offers instant start-up, lower heat generation, longer service life, and consistent curing performance, making it the ideal solution for medical manufacturers seeking higher production efficiency, improved product quality, and strict process repeatability.
Whether used in cleanrooms, R&D laboratories, or automated production lines, our UV curing chamber helps manufacturers meet the demanding quality standards of modern medical device production.
UV Curing Chamber Specifications
| Model |
CG-CHX-300*300mm -1000A/C |
Lamp Color |
White/black |
| Power |
1000W |
Chip Brand |
LG/Seoul |
| Input Voltage |
AC85-265V |
Wavelength |
365/385/395/405nm |
| Application |
UV ink/varnish/coating/adhesive curing |
Life Span |
20000H |
| Cooling Way |
Air cooling |
Emitting Window Size |
300*300mm |
| UV Intensity |
2W/CM² |
Dimmable |
0%-100% |
| Best Emitting Distance |
30-50mm |
Package |
Wooden case |
UV Curing Chamber Advantages
- Energy-saving, normally 1000W LED UV equals to 6000W mercury lamp drying effect
- Environment friendly, No mercury. No ozone making and VOC discharge
- No warm-up, turn on/off instantly
- Low temperature, can be used for PE and film ink curing
- Long lifespan, 10000 hours
Product Features
Precision Optical System
Engineered optical lenses deliver highly uniform UV distribution for consistent adhesive curing.
Intelligent Touch Screen Control
Easy operation with programmable curing recipes and real-time monitoring.
Functions include:
- Timer setting
- Intensity adjustment
- Recipe storage
- Production counter
- System diagnostics
Efficient Air Cooling System
Advanced forced-air cooling maintains stable operating temperatures for continuous production without overheating.
Multiple UV Wavelength Options
Available wavelengths include:
Customized wavelengths are available for specific UV adhesive formulations.
Applications
Medical Endoscope Manufacturing
Suitable for precision bonding of:
- Endoscope objective lenses
- Optical fiber assemblies
- CMOS camera modules
- Protective windows
- Light guide bonding
- Distal tip assembly
- Catheter visualization systems
Hearing Aid Manufacturing
Ideal for:
- Shell bonding
- Receiver fixation
- Microphone assembly
- Sound tube bonding
- Transparent housing assembly
- Battery compartment sealing
- Waterproof adhesive curing
Medical Optical Devices
Applicable for:
- Surgical imaging systems
- Medical cameras
- Diagnostic equipment
- Fiber optic connectors
- Optical sensors
Wearable Medical Electronics
Supports manufacturing of:
- Smart hearing devices
- Medical monitoring devices
- Wearable diagnostic equipment
- Portable healthcare electronics
UV Curing Chamber FAQ
Q1: What's the wavelength of the LED UV lamp?
A1: Usually 395-405nm. The 395nm/385nm is used for printing machine, 365 nm is for adhesive.
Q2: What's your LED brand?
A2: LG/Seoul
Q3: What's the material of lamp and lens?
A3: Aluminium/quartz
Q4: What's the cooling way for the LED UV curing system?
A4: Water or air cooling
Q5: The UV intensity can be changed?
A5: Yes, the UV intensity is changeable from 0%-100%
Q6: What's the max energy of UV LED lamp?
A6: It depends on emitting time, the longer the higher energy output total amount.
Q7: What's the lifespan of the UV LED curing lamp?
A7: Our warranty is 2 years for all system (Chiller/power supply) mostly can reach 5 years.
Why Choose Super Curing?
- 13+ Years of UV LED Curing Experience
- Custom UV Solutions for Industrial Manufacturing
- Fast Sample Testing & Process Validation
- Global OEM & ODM Support
- CE & RoHS Certified Products
- Experienced Engineering Team
- Worldwide Technical Support
- Rapid Delivery for Standard Models
Request a Custom UV Curing Solution
Whether you are developing next-generation micro speakers, MEMS acoustic devices, TWS earphones, or other precision electronic assemblies, Super Curing provides tailored UV LED curing solutions designed to maximize production efficiency and product reliability.
