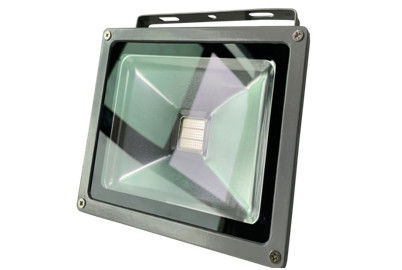

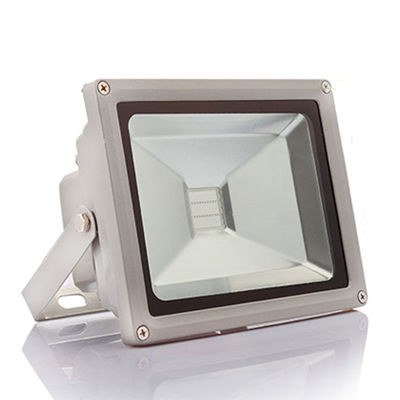

365nm 50W UV LED Floodlight with Air Cooling for Industrial UV Curing and NDT

Large Image : 365nm 50W UV LED Floodlight with Air Cooling for Industrial UV Curing and NDT

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-BL-30A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	45-60usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

365nm 50W UV LED Floodlight with Air Cooling for Industrial UV Curing and NDT

Description

Keyword:	Ultraviolet Black Light	Power:	30W
Input Voltage:	AC85-265V	Wave Length:	365nm/395nm
Cooling Way:	Air Cooling	UV Intensity:	268mW/CM2
Warranty:	1years	Package:	Wooden Case
Highlight:	No VOC 50W UV LED Floodlight , 365nm 50W UV LED Floodlight , 20000 Hours 365nm UV Flood light

365nm 50W UV LED Floodlight Air Cooling No VOC Discharge 20000 Hours

The CG-FL-50W Series is a high-performance, industrial-grade UV LED floodlight designed for precision applications requiring a pure 365nm wavelength. Equipped with an advanced passive air-cooling structure and premium quartz/tempered optics, this 50W system delivers intense, uniform UV-A energy without generating excessive heat or harmful ozone.

It serves as a highly efficient, eco-friendly replacement for traditional 250W-500W mercury vapor lamps, making it ideal for industrial UV glue curing, electronic component bonding, non-destructive testing (NDT), and high-end fluorescence analysis.

Technical Specifications

Model	CG-FL-30A/C	Lamp Color	White/black
Power	50W	Chip Brand	Epistar
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Way	Air cooling	Emitting Window Size	150*200mm
UV Intensity	268mW/CM²	Dimmable	NO
Best Emitting Distance	300-500mm	Package	Wooden case

Detailed Product Applications

Industrial Curing & Bonding: Perfect for high-precision UV adhesive curing in smartphone assembly, optical lens bonding, medical devices, and electronic component potting.
Non-Destructive Testing (NDT): Delivers pure 365nm light with zero visible glare, ideal for fluorescent penetrant inspection to detect micro-cracks in aerospace, automotive, and welding parts.
Forensics & Detection: Widely used by crime labs and experts for mineral analysis, document verification, passport authentication, and high-end gemstone/artwork identification.
Inspection & Quality Control: Highly effective for industrial leak detection (with fluorescent dyes), conformal coating inspection on PCBs, and aflatoxin testing in food processing.

Product Advantages

Energy-saving: Normally 1000W LED UV equals to 6000W mercury lamp drying effect
Environment friendly: No mercury, no ozone making and VOC discharge
No warm-up: Turn on/off instantly
Low temperature: Can be used for PE and film ink curing
Long lifespan: 20,000 hours

Frequently Asked Questions

Q1: What's the wavelength of the Ultraviolet Black Light?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machine, 365nm is for adhesive.

Q2: What's your Ultraviolet Black Light LED chip brand?

A2: Epistar

Q3: What's the material of the Ultraviolet Black Light?

A3: Aluminium / tempered glass

Q4: What's the cooling way for the Ultraviolet Black Light?

A4: Air cooling

Q5: The UV intensity can be changed?

A5: No

Q6: What's the max energy of Ultraviolet Black Light?

A6: It depends on emitting time - the longer the higher energy output total amount.

Q7: What's the lifespan of the Ultraviolet Black Light?

A7: Our warranty is 2 years for all system (chiller/power supply), mostly can reach 5 years.
