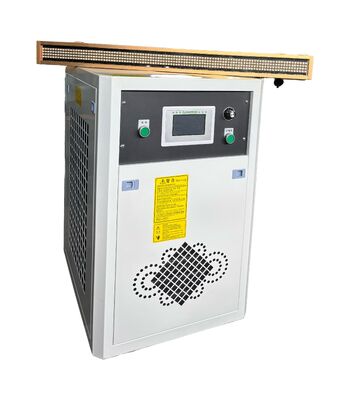

Industrial Water-Cooled UV LED Curing System
High-Power UV LED Solution for Continuous Industrial Production
UV LED Curing Equipment Description
Designed for high-speed manufacturing, our Industrial Water-Cooled UV LED Curing System delivers exceptional UV intensity, excellent thermal stability and reliable curing performance for demanding production environments.
Combining a high-power UV LED irradiation head, intelligent controller and industrial water chiller, the system ensures stable UV output during continuous 24/7 operation while reducing energy consumption and maintenance costs.
Ideal for replacing conventional mercury UV lamps in modern production lines.
UV LED Curing Equipment Datasheet
| Model |
CG-CT3-72027-2700A |
Lamp color |
Rose golden |
| Power |
2700W |
Chip brand |
LG/Seoul |
| Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
| Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
| Cooling way |
Water cooling |
Emitting window size |
customized |
| UV intensity |
18W/CM2 |
Dimmable |
0%-100% |
| Best emitting distance |
30-50mm |
Package |
wooden case |
Key Advantages
- Peak irradiance up to 18W/cm²
- Continuous 24/7 operation
- Intelligent touch screen control
- Stable water cooling system
- Instant ON/OFF
- No mercury, no ozone
- Low heat radiation
- Up to 20,000 hours LED lifetime
- Energy saving compared with traditional UV lamps
- OEM & ODM customization available
Intelligent Touch Screen Control
The integrated control cabinet provides a simple and intuitive operating experience.
Functions include
- Touch screen operation
- Digital power adjustment
- Real-time system monitoring
- UV intensity adjustment
- Water cooling monitoring
- Fault alarm protection
- External signal control
- PLC integration
Perfect for automated production lines.
Typical Applications
Printing Industry
- Flexographic Printing
- Offset Printing
- Screen Printing
- Digital Inkjet Printing
- Label Printing
- Packaging Printing
Industrial Coating
- Wood Coating
- Plastic Coating
- Metal Coating
- Decorative Coating
- Protective Coating
Electronics Manufacturing
- PCB Assembly
- Camera Module Bonding
- Sensor Packaging
- Connector Sealing
- Semiconductor Packaging
Adhesive Bonding
- Glass Bonding
- Optical Lens Assembly
- Medical Device Manufacturing
- Display Bonding
- Automotive Electronics
UV LED Curing Equipment FAQ:
Is the irradiation size customizable?
Yes.
Both the irradiation length and emitting window size can be customized according to your production requirements.
Can this system replace mercury UV lamps?
Yes. It is designed as a high-efficiency replacement for conventional mercury UV curing systems in printing, coating and adhesive applications.
Does the system support continuous production?
Yes.
The industrial water cooling system ensures stable UV output during continuous 24/7 operation.
Which wavelength should I choose?
365nm — Optical and medical adhesives
385nm — Specialty coatings
395nm — UV inks, coatings and printing
405nm — UV resin and electronics
What’s your led brand ?
LG/Seoul
What’s the material of lamp and lens ?
Aluminium /quartz
What’s the cooling way for the leduv curing system ?
Water or air cooling
The uv intensity can be change?
Yes, the uv intensity is changeable from 0%-100%
