300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing

300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing
300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing 300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing 300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing 300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing

Large Image :  300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing

Product Details:
Place of Origin: China
Brand Name: CG
Certification: CE*RoHS
Model Number: CG-SCS-200*20-300A/C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 500-680usd 1 set
Packaging Details: Wooden case
Delivery Time: 10-15 Working days
Payment Terms: L/C,T/T
Supply Ability: 10 SET/DAY
Contact Now

300W Air Cooling LED UV Curing Lamp 395nm for Adhesive Ink and Coating Curing

Description
Keyword: UV Curing Light Power: 300W
Input Voltage: AC85-265V Wave Length: 365nm
Cooling Way: Air Cooling UV Intensity: 2W/CM2
Warranty: 1years Package: Wooden Case
Highlight:

20000H LED UV Curing Lamp

,

Glue Ink LED UV Curing Lamp

,

ODM UV LED Curing Lamp

300W Air Cooling LED UV Curing Lamp 395nm For UV Adhesive Ink And Coating Curing
Product Overview

The CG-SCS-200*20-300A/C LED UV Curing Lamp is a high-performance industrial UV LED curing system designed for fast curing of UV adhesives, UV inks, UV coatings, UV varnishes, and UV-sensitive materials.

Available in 365nm, 385nm, 395nm, and 405nm wavelengths, this air-cooled UV LED lamp delivers stable UV output, low operating temperature, and long service life, making it an ideal replacement for traditional mercury UV lamps.

Technical Specifications
Model CG-SCS-200*20-300A/C Lamp Color White/black
Power 300W Chip Brand LG/Seoul
Input Voltage AC85-265V Wavelength 365/385/395/405nm
Application UV ink/varnish/coating/adhesive curing Life Span 20000H
Cooling Method Air cooling Emitting Window Size 200*20mm
UV Intensity 2W/CM² Dimmable 0%-100%
Best Emitting Distance 30-50mm Package Wooden case
Key Advantages
  • Energy-saving - 1000W LED UV equals 6000W mercury lamp drying effect
  • Environmentally friendly - No mercury, no ozone generation, and VOC discharge
  • No warm-up required - Instant on/off operation
  • Low temperature operation - Suitable for PE and film ink curing
  • Long lifespan - 20,000 hours
Product Images

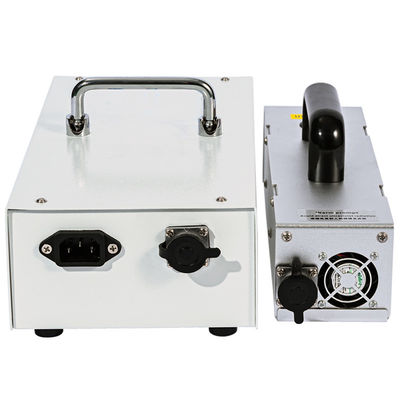

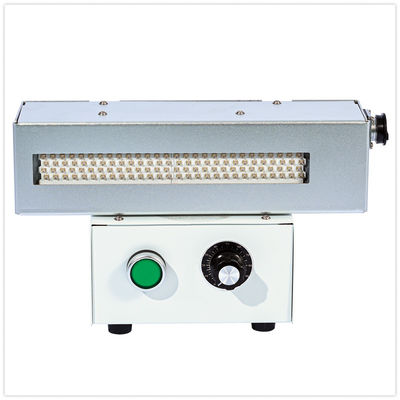

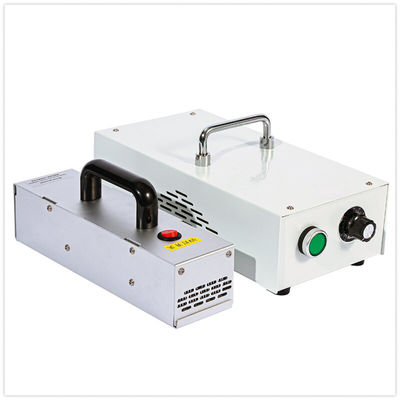

300W Air Cooling LED UV Curing Lamp front view 300W Air Cooling LED UV Curing Lamp side view 300W Air Cooling LED UV Curing Lamp in operation
Customization Options

We provide OEM and ODM customization services:

  • Custom emitting window sizes
  • Custom wavelengths
  • Air cooling or water cooling options
  • Conveyor curing system integration
  • Automated production line integration
Typical Applications
UV Adhesive Bonding
  • Optical lens bonding
  • Camera module assembly
  • Sensor packaging
  • Electronic component bonding
  • Medical device assembly
UV Ink Curing
  • Label printing
  • Packaging printing
  • Screen printing
  • Digital printing
  • Flexographic printing
UV Coating Curing
  • Plastic coatings
  • Wood coatings
  • Protective coatings
  • Functional coatings
  • Decorative coatings
Electronics Manufacturing
  • PCB assembly
  • Green oil repair
  • Connector sealing
  • Wire fixation
  • Micro-speaker assembly
Medical Industry
  • Catheter bonding
  • Syringe assembly
  • Disposable medical device manufacturing
  • Microfluidic chip sealing
Laboratory & Research
  • UV material testing
  • Adhesive evaluation
  • Prototype development
  • Small batch production
Frequently Asked Questions
Q1. Which wavelength should I choose?

365nm is commonly used for UV adhesive curing. 385nm and 395nm are widely used for printing applications. 405nm is suitable for specific UV materials.

Q2. Can this UV LED lamp replace a mercury lamp?

Yes. In many adhesive, coating, and printing applications, UV LED technology has successfully replaced traditional mercury UV lamps.

Q3. Can UV intensity be adjusted?

Yes. The UV output can be adjusted from 0% to 100%.

Q4. Do you support custom sizes?

Yes. We provide customized emitting window sizes, wavelengths, and control systems.

Q5. What cooling options are available?

Both air cooling and water cooling versions are available according to application requirements.

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

S
SitkaZach
Sweden Mar 13.2026
Helpful (29)
Most UVLED lamps work as long as they are 395nm
S
Samuel
Austria May 6.2025
Helpful (65)
The air-cooling system allows for high-frequency "on-demand" operation. Each vehicle can be moved directly to the next repair shop almost immediately after repair without needing to stop for cooling. It's fantastic.
E
Elijah
United States Mar 20.2025
Helpful (78)
Previously I used a light that cooled naturally, and its power would drop after a while. This one with air cooling is really powerful; the heat is dissipated very quickly once the fan starts spinning. The curing speed has remained consistent.
