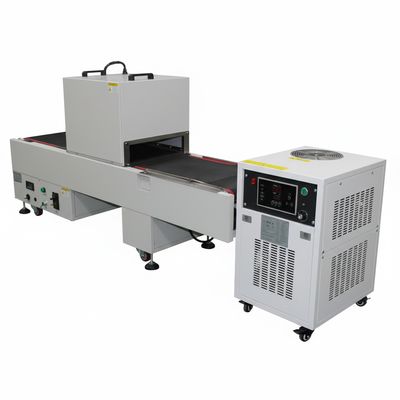

No Ozone UV Curing Conveyor Machine , 265V UV Light Curing System No VOC Discharge

Large Image : No Ozone UV Curing Conveyor Machine , 265V UV Light Curing System No VOC Discharge

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-GHL-W400-360*27-A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	3500-3900usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

No Ozone UV Curing Conveyor Machine , 265V UV Light Curing System No VOC Discharge

Description

Keyword:	UV Curing Conveyor Systems	Power:	1500W
Input Voltage:	AC85-265V	Wave Length:	395nm/365nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	No ozone UV curing conveyor machine , 265V UV light curing system , VOC-free UV curing conveyor

UV Curing Conveyor Systems Ultraviolet LED Curing Machine Conveyor

UV Curing Conveyor Systems Description

The UV LED curing lamp represents a new technology and method for emitting ultraviolet (UV) radiation to dry a wide range of UV-curable materials—such as resins, inks, varnishes, adhesives, and coatings—offering fast speed and excellent performance in modern manufacturing.

UV Curing Conveyor Systems Datasheet

Model	CG-GHL-W400-360*27-A/C	lamp color	Rose golden
Power	1500W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV Curing Conveyor Systems Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 20000hours .

No Ozone UV Curing Conveyor Machine , 265V UV Light Curing System No VOC Discharge 0

No Ozone UV Curing Conveyor Machine , 265V UV Light Curing System No VOC Discharge 1

UV Curing Conveyor Systems FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
