UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying

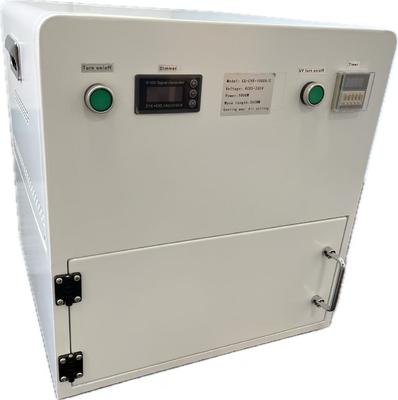

Large Image : UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CHX-300*300mm -1000A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	1800usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying

Description

Keyword:	UV Curing Oven	Power:	1000W
Input Voltage:	AC85-265V	Wave Length:	365nm/395nm
Cooling Way:	Air Cooling	UV Intensity:	2W/CM2
Warranty:	1years	Package:	Wooden Case
Highlight:	high power UV curing lamp , LED UV light box for resin , UV curing oven with warranty

365nm light system lamp resin drying box 300*300mm uv led curing oven

UV Curing Chamber Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

UV Curing Chamber Datasheet

Model	CG-CHX-300*300mm -1000A/C	lamp color	White/black
Power	1000W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Air cooling	Emitting window size	300*300mm
UV intensity	2W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV Curing Chamber Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Eco-friendly and mercury-free, ensuring zero ozone production and no VOC emissions.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 10000hours .

UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying 0

UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying 1

UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying 2

UV Curing Lamp High Power LED Curing Oven UV Light Box for Resin Drying 3

UV Curing Chamber FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
