Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing.

Name: Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing.
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-GHL-W400-360*27-A/C
Price: 1,750.00 USD
Availability: InStock

All Products

LED UV Curing System
(43)

UV LED Curing Equipment
(68)

LED UV Curing Lamp
(28)

UV Curing Solution
(28)

UV Curing Light
(28)

UV Curing Conveyor Systems
(37)

UV Curing Chamber
(40)

LED UV Flashlight
(23)

Ultraviolet Black Light
(17)

UV Dryer Machine
(21)

Hand Held UV Lamp
(31)

Sterilizing lamp
(7)

Certification

Customer Reviews

We have cooperation for long long time ,it's a good experience .

—— Mike

Sincerely hope to we can cooperation next time soon.

—— Bok

I like your leduv flashlight very much it's hand-held and operation very easy.

—— Christophe

I'm Online Chat Now

Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing.

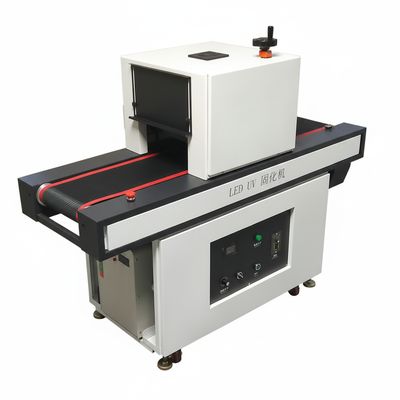

Large Image : Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing.

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-GHL-W400-360*27-A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	3500-3900usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing.

Description

Keyword:	UV Curing Conveyor Systems	Power:	1500W
Input Voltage:	AC85-265V	Wave Length:	395nm/365nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	UV curing conveyor system for glue , water cooling UV light equipment , UV curing conveyor with warranty

UV Curing Conveyor Systems UV Drying Conveyor UV Curing Machine

UV Curing Conveyor Systems Description

Step away from conventional drying. Embrace the efficiency revolution of LED UV curing. This advanced technology instantly delivers UV light for fast, flawless curing of your materials. For inks, coatings, and adhesives alike, LED UV guarantees superior curing results in minimal time.

UV Curing Conveyor Systems Datasheet

Model	CG-GHL-W400-360*27-A/C	lamp color	Black white
Power	1500W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV Curing Conveyor Systems Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , Sustainable Manufacturing. No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink curing .
Long lifespan, 20000hours .

Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing. 0

Water Cooling UV Curing Conveyor UV Light Equipment Systems UV Light For Glue Curing. 1

UV Curing Conveyor Systems FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
