Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length

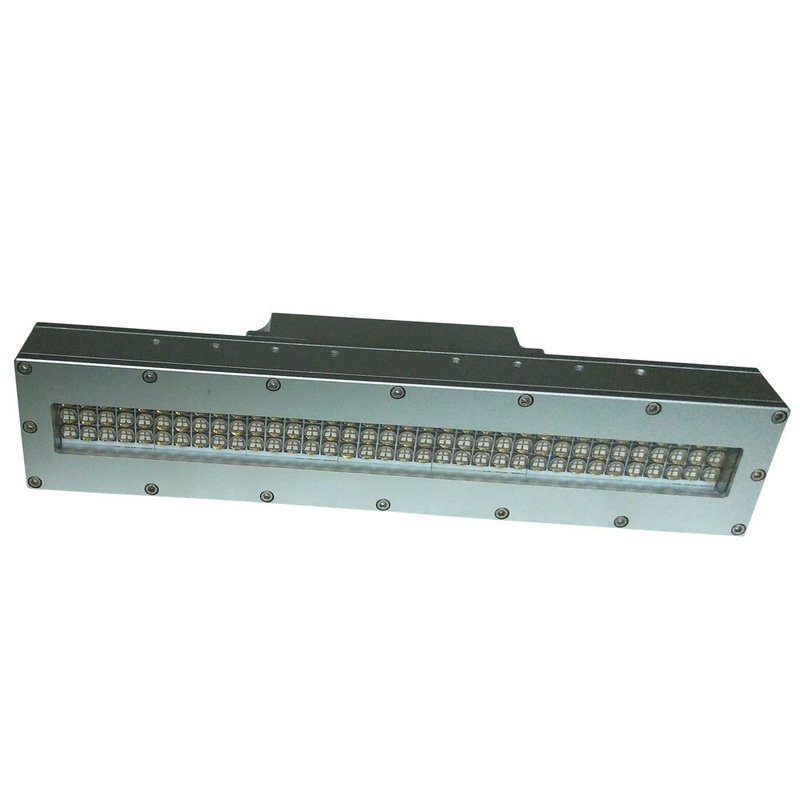

Large Image : Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-40027-1500A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2000-2200usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length

Description

Keyword:	LED UV Curing System	Power:	1200W
Input Voltage:	AC85-265V	Wave Length:	395nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	Linear LED UV curing lamp , 365nm UV ink curing system , 395nm wavelength LED curing lamp

Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length

Linear Curing System 365nm 395nm 405nm uv led curing lamp

LED UV Curing System Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

LED UV Curing System Datasheet

Model	CG-CT3-40027-1200A	lamp color	Rose golden/Sliver
Power	1200W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

LED UV Curing System Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 20000hours .

Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length 0

Linear LED UV Ink Curing Lamp System With 365nm 395nm 405nm Wave Length 1

LED UV Curing System FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2: LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
