1200W Multi-Wavelength UV LED Curing System with Water Cooling and 18W/CM2 UV Intensity for Laboratory Testing

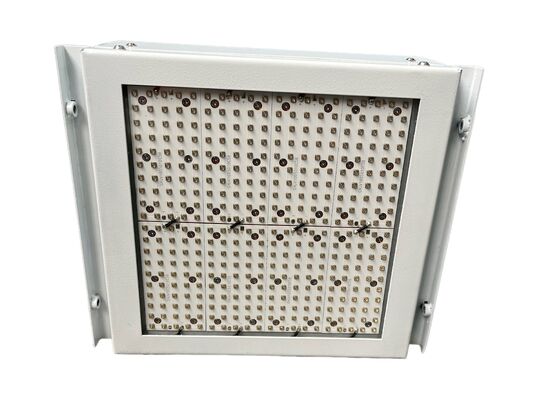

Large Image : 1200W Multi-Wavelength UV LED Curing System with Water Cooling and 18W/CM2 UV Intensity for Laboratory Testing

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-40027-1500A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2000-2200usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

1200W Multi-Wavelength UV LED Curing System with Water Cooling and 18W/CM2 UV Intensity for Laboratory Testing

Description

Keyword:	LED UV Curing System	Power:	1200W
Input Voltage:	AC85-265V	Wave Length:	365nm/385nm/395nm/405nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	High Power UV Curing LED System , Multi-band wavelength UV lamp , 395nm UV Curing Solution

Multi-Wavelength UV LED Curing System for Laboratory Testing

The Multi-Wavelength UV LED Curing System is designed for laboratory testing, product development, and small-batch production. Supporting 365nm, 385nm, 395nm, and 405nm wavelengths, it enables accurate evaluation of UV adhesives, UV inks, UV coatings, UV resins, and photosensitive materials. The system provides reliable curing performance for research laboratories, universities, electronics manufacturers, medical device companies, and industrial R&D departments.

Technical Specifications

Model	CG-CT3-40027-1200A	Lamp Color	Rose Golden
Power	1200W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Lifespan	20,000 Hours
Cooling Method	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

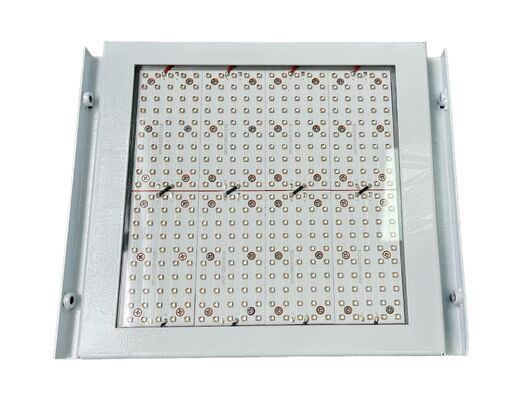

Product Images

Typical Applications

Application	Description
UV Adhesive Testing	Bonding evaluation
UV Ink Testing	Ink curing verification
UV Coating Testing	Surface coating development
UV Resin Curing	Resin formulation testing
Electronics Assembly	PCB and component bonding
Medical Device R&D	UV adhesive validation
Optical Lens Bonding	Lens assembly testing
University Research	Material development
Prototype Production	Small-batch manufacturing
Quality Control	Incoming material inspection

System Advantages

Energy-saving: 1000W LED UV equals 6000W mercury lamp drying effect
Environmentally friendly: No mercury, ozone, or VOC discharge
Instant operation: No warm-up required, turns on/off instantly
Low temperature: Suitable for PE and film ink curing
Long lifespan: 20,000 hours

Frequently Asked Questions

What is a laboratory UV LED curing system used for?

It is used to test and evaluate UV adhesives, UV inks, UV coatings, and UV resins during product development, quality control, and research.

Which wavelength should I choose?

395nm is commonly used for UV inks and coatings, while 365nm is suitable for many UV adhesives. 385nm and 405nm are available for specific formulations.

Can I adjust the UV intensity?

Yes. The output power is adjustable from 0%-100% to meet different testing requirements and curing conditions.

Can the system be customized?

Yes. We offer customized wavelengths, curing area, power, cooling method, and control options.

Which industries use this system?

It is widely used in electronics, medical devices, optical manufacturing, printing, laboratories, universities, and industrial R&D centers.

What's your LED brand?

LG/Seoul

What's the lifespan of the UV LED curing lamp?

Our warranty is 2 years for all systems (chiller/power supply) and typically reaches 5 years of operation.
