1500W LED UV Curing System with Water Cooling and 365nm/395nm Wavelength for UV Ink Drying

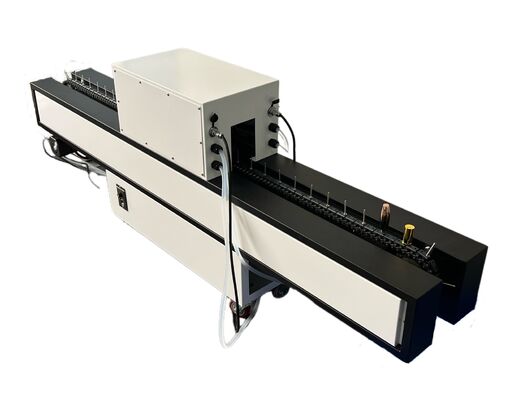

Large Image : 1500W LED UV Curing System with Water Cooling and 365nm/395nm Wavelength for UV Ink Drying

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-GHL-W400-360*27-A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	3500-3900usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

1500W LED UV Curing System with Water Cooling and 365nm/395nm Wavelength for UV Ink Drying

Description

Keyword:	UV Curing Conveyor Systems	Power:	1500W
Input Voltage:	AC85-265V	Wave Length:	395nm/365nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	1500W LED UV Curing System , Water Cooling UV Curing Conveyor System , 365nm/395nm Wavelength UV Ink Drying Machine

1000W LED UV Ink Drying System Water Machine

LED UV curing technology is a cutting-edge solution that utilizes targeted UV radiation to rapidly cure a variety of photo-sensitive materials like inks, resins, and coatings. This innovative approach delivers high speed and superior results, establishing it as the preferred method in today's market.

Technical Specifications

Model	CG-GHL-W400-360*27-A/C	Lamp Color	Rose Golden
Power	1500W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Method	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

System Advantages

Energy-saving - 1000W LED UV equals 6000W mercury lamp drying effect
Environmentally friendly - No mercury, no ozone production, and VOC discharge
Instant operation - No warm-up required, turns on/off instantly
Low temperature operation - Suitable for PE and film ink curing
Long lifespan - 20,000 hours of operation

Frequently Asked Questions

Q: What's the wavelength of the LED UV lamp?

A: Usually 395-405nm. The 395nm/385nm is used for printing machines, while 365nm is for adhesives.

Q: What's your LED brand?

A: LG/Seoul

Q: What's the material of lamp and lens?

A: Aluminium/quartz

Q: What's the cooling method for the LED UV curing system?

A: Water or air cooling

Q: Can the UV intensity be changed?

A: Yes, the UV intensity is adjustable from 0%-100%

Q: What's the maximum energy of the UV LED lamp?

A: It depends on emitting time - the longer the duration, the higher the total energy output.

Q: What's the lifespan of the UV LED curing lamp?

A: Our warranty is 2 years for all systems (chiller/power supply), with most units reaching 5 years of operation.
