Product Details:
|
| Keyword: | UV Curing Light | Power: | 400W |
|---|---|---|---|
| Input Voltage: | AC85-265V | Wave Length: | 365nm/385nm/395nm/405nm |
| Cooling Way: | Air Cooling | UV Intensity: | 2W/CM2 |
| Warranty: | 1years | Package: | Wooden Case |

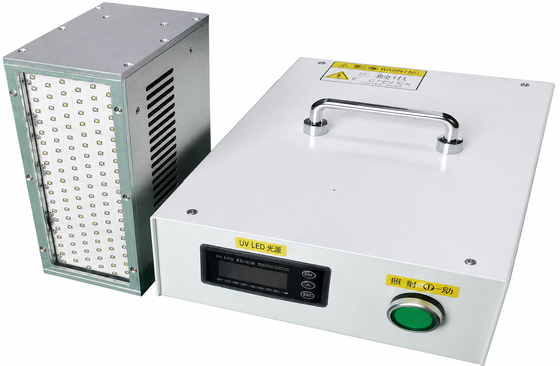

This industrial-grade 400W Air-Cooled UV LED Curing System utilizes cutting-edge ultraviolet radiation technology to provide instantaneous, uniform drying for UV-series materials—including inks, varnishes, adhesives, and coatings. Engineered with high-tier LG/Seoul chipsets and an integrated dimming system, it delivers superior performance, massive energy savings, and exceptional thermal control for heat-sensitive substrates. This versatile 400W UV curing light is highly optimized for integration into compact and semi-automated production setups:
Parameter
Specification
Parameter
Specification
Model
CG-SCS-200*60-400A
Optimal Distance
30 - 50 mm
Power
400W
Cooling Method
Air Cooling
LED Chip Brand
LG / Seoul Semiconductors
Expected Lifespan
20,000 Hours
Input Voltage
AC 85-265V (Wide Voltage)
Housing Material
Anodized Aluminum Alloy
Wavelengths
365nm / 385nm / 395nm / 405nm
Lens Material
High-Transmittance Quartz
Emitting Window
200 * 60 mm
Standard Packaging
Wooden Case
UV Intensity
2 W/cm²
Dimming Range
0% - 100%
