Industrial UV LED Linear Curing System for Conveyor Line, UV Glue and Adhesive Curing

Large Image : Industrial UV LED Linear Curing System for Conveyor Line, UV Glue and Adhesive Curing

Product Details:

Place of Origin:	China
Brand Name:	Super-curing
Certification:	CE/RoHS
Model Number:	CG-L30010-C

Payment & Shipping Terms:

Minimum Order Quantity:	2
Packaging Details:	Cardboard packaging
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C

Contact Now

Industrial UV LED Linear Curing System for Conveyor Line, UV Glue and Adhesive Curing

Description

Highlight:

Industrial UV LED curing system

UV glue curing conveyor system

LED UV adhesive curing system

300x10mm Emitting Area UV LED Line Light 2400mW/cm² High Power Ultraviolet Curing Lamp

Model: CG-L30010-C
High-Performance UV LED Line Light Source for Printing, Coating, Adhesive Bonding & Industrial Manufacturing

The CG-L30010-C Air-Cooled UV LED Linear Light Source is designed for high-speed industrial UV curing applications. Utilizing advanced UV LED technology and high-density LED chip arrays, it delivers exceptional irradiance, excellent curing uniformity, low heat generation, and long service life.

Compared with traditional mercury lamps, the CG-L30010-C offers instant ON/OFF operation, energy savings of up to 70%, no mercury pollution, no ozone generation, and minimal maintenance requirements, making it an ideal solution for modern industrial production lines.

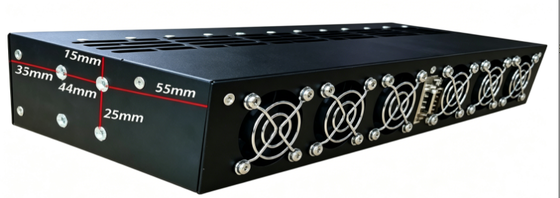

Product Images

Technical Specifications

Parameter	Specification	Parameter	Specification
Model	CG-L30010-C	Product Type	UV LED Linear Curing System
Cooling Method	Air Cooling	Housing Material	Aluminum Alloy
Dimensions (LWH)	318 * 55 * 120 mm	Emitting Area	300 * 10 mm
Peak Irradiance	2400mW/cm²	Irradiance Uniformity	>85%
Standard Wavelength	365nm	Optional Wavelengths	385nm / 395nm / 405nm
Power Consumption	320W	Operating Noise	≤75dB
Lifespan	>20,000 Hours	Installation Type	Production Line Integration
Control Interface	Dry Contact / 0-24V Analog	Control Signal	Pulse Signal / Level Signal
Alarm Output	Dry Contact Signal	Optional Monitoring	LED Status / Irradiance Monitoring
Working Mode	Continuous / Intermittent	Customization	Available

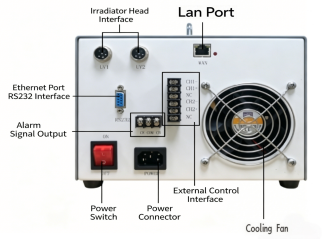

Intelligent Controller Specifications

Parameter	Specification	Parameter	Specification
Model	CG-L30010-C Controller	Controller Type	Intelligent UV LED Controller
Dimensions	315 * 225 * 165 mm	Weight	6kg
Power Supply	AC220V 15A	Cooling Method	Air Cooling
UVLED Channels	2 Channels	Maximum Drive Power	2400W
Communication Interface	RS232 / Ethernet	I/O Control	Supported
External Control	Dry Contact / Analog Signal	Touch Panel	Integrated LCD Screen

Key Features & Advantages

UV Lamp + Controller Integrated Solution
High Irradiance up to 2400mW/cm²
PLC and Automation Compatible
RS232 & Ethernet Communication
Independent Multi-Channel Control
Stable Air-Cooled Design
20,000+ Hour Lifespan
Mercury-Free & Environmentally Friendly
OEM & ODM Customization Available

Frequently Asked Questions

What UV wavelengths are available?

The standard wavelength is 365nm, with optional wavelengths of 385nm, 395nm, and 405nm available to match different UV materials and curing requirements.

What is the maximum UV intensity?

The CG-L30010-C provides a maximum irradiance of 2400mW/cm², enabling fast and efficient curing for industrial applications.

Can the UV output be adjusted?

Yes. The intelligent controller allows users to adjust the UV output according to different curing processes and production requirements.

Is wavelength customization available?

Yes. We can provide customized wavelengths, curing areas, and system configurations based on customer requirements.

What materials can this system cure?

It is suitable for curing:

UV inks
UV adhesives
UV coatings
UV varnishes
UV resins
Photosensitive materials
