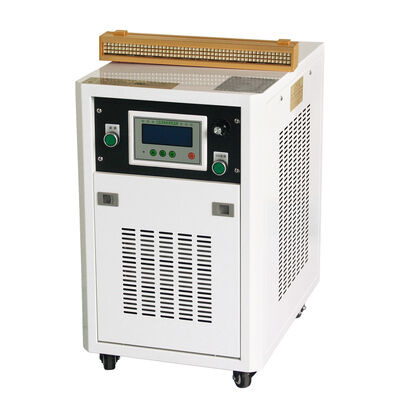

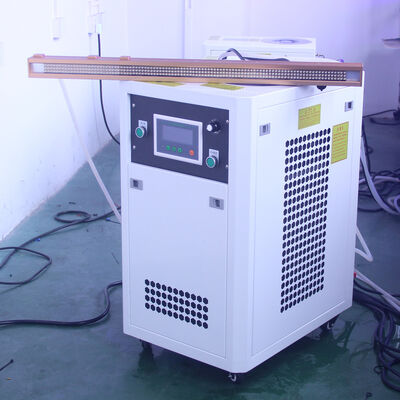

High-Intensity UV LED Curing System for Braille Screen Printing UV Ink and 3D Raised Texture Graphics
Product Overview
The UV LED Curing System is specially designed for high-precision screen printing applications requiring fast and uniform UV ink curing.
With advanced water-cooled UV LED technology, this system provides stable high-intensity ultraviolet output for curing thick-layer UV inks, Braille printing inks, raised texture coatings, and functional printing materials.
Compared with traditional mercury UV lamps, LED UV curing technology delivers instant curing performance, lower heat generation, longer service life, and improved production efficiency.
LED UV Curing System Datasheet
| Model | CG-CT3-40027-1200A | Lamp color | Rose golden |
|---|
| Power | 1200W | Chip brand | LG/Seoul |
|---|
| Input voltage | AC85-265V | Wave length | 365/385/395/405nm |
|---|
| Application | UV ink/vanish/coating /adhesive curing | Life span | 20000H |
|---|
| Cooling way | Water cooling | Emitting window size | customized |
|---|
| UV intensity | 18W/CM2 | Dimmable | 0%-100% |
|---|
| Best emitting distance | 30-50mm | Package | wooden case |
|---|
Perfect Solution for Braille Printing and Raised UV Graphics
Braille and tactile printing require precise UV curing performance to maintain:
- Accurate Braille dot height
- Strong ink adhesion
- Smooth surface finish
- Excellent tactile feeling
- Long-term durability
Our UV LED curing equipment provides uniform UV energy distribution, ensuring complete curing of thick UV ink layers used in:
- ADA Braille signage
- Accessibility labels
- Tactile graphics
- 3D raised printing
- Decorative screen printing
LED UV Curing System Advantages
- Energy-saving, normally 1000W LEDUV equal to 6000W mercury lamp drying effect.
- Environment friendly, No mercury. No ozone making and VOC discharge.
- NO warm-up, turn on/off instantly.
- Low temperature, can be used for PE and film ink curring.
- Long lifespan, 20000hours.
Applications
Braille & Accessibility Printing
- ADA Braille signs
- Tactile maps
- Raised lettering
- Safety labels
Screen Printing Industry
- UV ink curing
- UV varnish curing
- Texture coating
- Decorative printing
Packaging Printing
- Cosmetic packaging
- Premium labels
- Luxury boxes
- Folding cartons
Electronics Manufacturing
- PCB ink curing
- Protective coating curing
- Component marking
LED UV Curing System FAQ:
Q1: What’s the wavelength of the leduv lamp?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine, 365 nm is for adhesive.
Q2: What’s your led brand?
A2: LG/Seoul
Q3: What’s the material of lamp and lens?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp?
A6: It’s depend on emitting time, the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp?
A7: Our warranty is 2yeas for all system (Chiller /power supply) mostly can reach 5yeas
