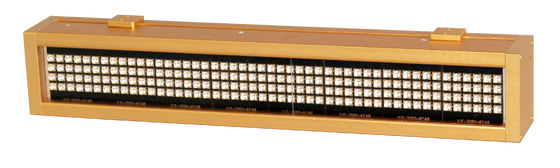

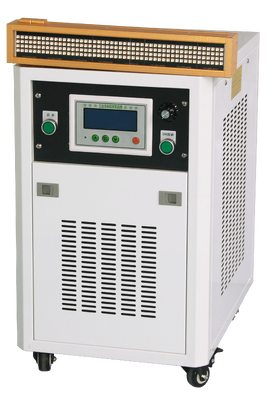

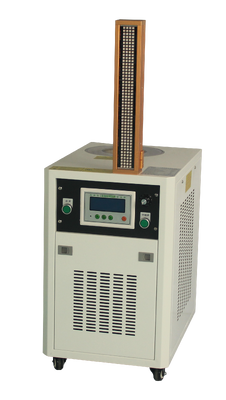

Water Cooled 395nm 16W per cm² UV LED Inkjet Printing Curing System for Industrial Production Lines

Water Cooled 395nm UV LED Curing System for Inkjet Printing

The CG-CT4 -50400 is a high-performance water-cooled UV LED curing system specifically engineered for industrial inkjet printing lines. With 16W per cm² peak irradiance at 395nm wavelength, this system delivers rapid and consistent curing for UV-curable inks across continuous production runs without thermal damage to heat-sensitive substrates.

Key Features

• High-Intensity 395nm LED Array – Delivers 16W per cm² uniform irradiance for instant ink curing at production speeds up to 120m/min
• Advanced Water Cooling System – Closed-loop liquid cooling maintains optimal LED junction temperature below 45°C, extending LED lifespan beyond 20,000 hours
• PLC Touch Screen Control – Intuitive interface with real-time irradiance monitoring, step-less power adjustment from 0% to 100%, and programmable curing profiles
• Modular Design – Scalable irradiation heads with 300mm x 25mm per module support print widths from 100mm to 2000mm
• Industrial-Grade Construction – IP54-rated housing with quartz glass window, compatible with demanding production environments

Technical Specifications

Applications

Ideal for UV inkjet printing on paper, plastic, metal, glass, and flexible packaging. Compatible with major inkjet print head brands including Konica Minolta, Ricoh, and Kyocera.

Packaging & Warranty

Each system is shipped in an export-grade plywood case with shock-proof foam padding. Includes 12-month warranty, installation manual, and remote technical support.
