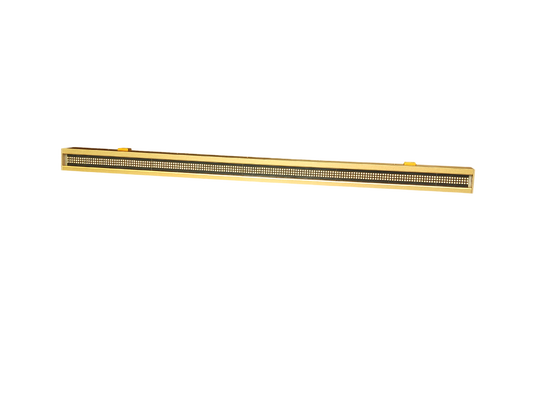

Water Cooled Multi-Wavelength 365nm 16W per cm² UV LED Optical Coating Curing System for Precision Applications

Multi-Wavelength Water Cooled UV LED Curing System for Optical Coating

The CG-CT3- 27900-2400A is a precision multi-wavelength water-cooled UV LED curing system purpose-built for optical coating and lens bonding applications. Featuring independently controllable 365nm,385nm, 395nm, and 405nm channels with 16W per cm² peak irradiance, this system provides unmatched curing flexibility for anti-reflective coatings, optical adhesives, and precision lens assembly.

Key Features

• Multi-Wavelength Output – Three independently controllable LED channels at 365nm, 385nm,395nm, and 405nm for curing diverse optical adhesives and coatings in a single system
• Precision Water Cooling – Advanced liquid cooling maintains temperature stability within ±1°C, critical for optical-grade curing uniformity
• Uniform Irradiance – Custom micro-lens array delivers over 95% irradiance uniformity across the 200mm x 200mm irradiation area
• PLC Touch Screen with Recipe Storage – Stores up to 50 curing recipes with independent wavelength, power, and duration settings per channel

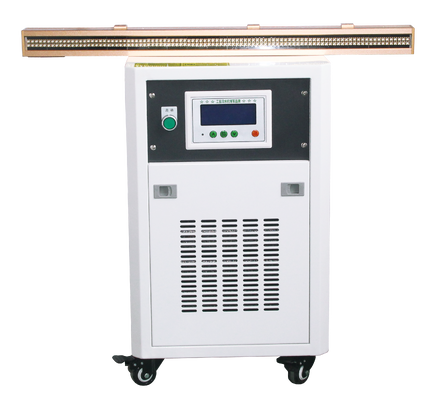

• Compact Benchtop Design – Space-efficient footprint with integrated water chiller unit, suitable for cleanroom and laboratory environments

Technical Specifications

Applications

Engineered for optical lens coating, anti-reflective layer curing, optical bonding of display panels, fiber optic connector curing, and precision medical device assembly. Class 100 cleanroom compatible.

Packaging & Warranty

Shipped in export-grade plywood case with anti-static foam padding and desiccant packs. Includes 2 years warranty, calibration certificate, and comprehensive technical documentation.
