Fast, Low-Heat UV Curing for Durable Wood & Flooring Finishes
Upgrade timber and wood flooring production with a high-intensity UV LED curing system engineered for UV-curable coatings, varnishes, sealers, primers and adhesives.
Our water-cooled UV LED curing technology delivers concentrated UV energy directly to the coating surface, enabling rapid polymerization without prolonged thermal drying. The result is a harder, more durable and production-ready surface with improved scratch, wear and chemical resistance.
For manufacturers of solid wood flooring, engineered wood flooring, parquet, MDF, HDF, plywood, wood panels and furniture components, UV LED curing provides a compact and controllable alternative to conventional curing processes.
Why UV LED Curing for Timber & Wood Flooring?
Traditional thermal or air-drying processes can require long curing times, large drying areas and significant energy consumption. UV curing allows specially formulated UV coatings to polymerize rapidly under high-intensity ultraviolet light.
Modern UV curing technology is widely used for wood fillers, sealers, primers, stains, base coats and topcoats in furniture and flooring production.
Key Production Benefits
Rapid Curing
Instant UV curing dramatically reduces waiting and handling time compared with conventional air-drying processes.
Low-Heat Processing
LED UV produces substantially less unwanted thermal load than conventional high-temperature curing methods, helping reduce the risk of heat-related substrate deformation and coating defects.
Durable Surface Finish
UV-curable coatings can provide excellent hardness, scratch resistance, wear resistance and chemical resistance for demanding flooring applications.
Adjustable UV Output
0–100% output adjustment allows the curing intensity to be matched to different coatings, coating thicknesses and production speeds.
More Sustainable Production
UV LED technology contains no mercury and does not generate ozone during operation. It can also reduce energy consumption compared with traditional UV curing technologies.
Instant ON/OFF
No warm-up period is required. The UV LED system starts and stops instantly, making it suitable for automated production lines and intermittent processing.
Designed for Wood Flooring Surface Finishing
Our UV LED curing systems can be configured for different stages of wood and flooring production.
1. UV Filler & Primer Curing
Rapidly cure UV fillers and primers after application to create a stable surface for subsequent sanding and coating.
Suitable for:
-
Solid wood
-
Engineered wood
-
MDF
-
HDF
-
Plywood
-
Wood panels
2. UV Sealer Curing
Achieve rapid curing of UV sealers before applying subsequent coating layers.
A controlled UV dose helps improve process consistency and allows the production line to move quickly to the next stage.
3. UV Base Coat Curing
Cure pigmented or transparent UV base coatings on wood flooring and decorative wood products.
4. UV Topcoat Curing
Produce a hard, wear-resistant final surface for flooring exposed to:
-
Foot traffic
-
Furniture movement
-
Scratches
-
Cleaning chemicals
-
Moisture
-
Daily abrasion
UV-curable topcoats are widely used to improve the durability and appearance of wood flooring surfaces.
High-Intensity UV LED Technology

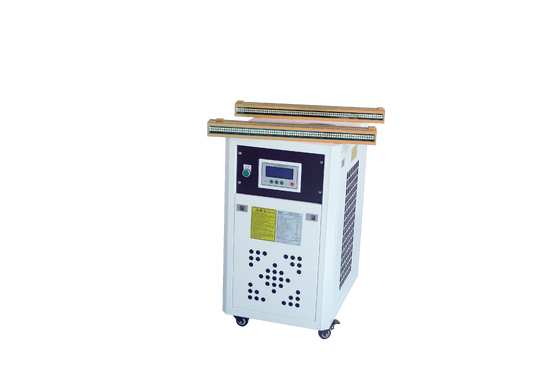

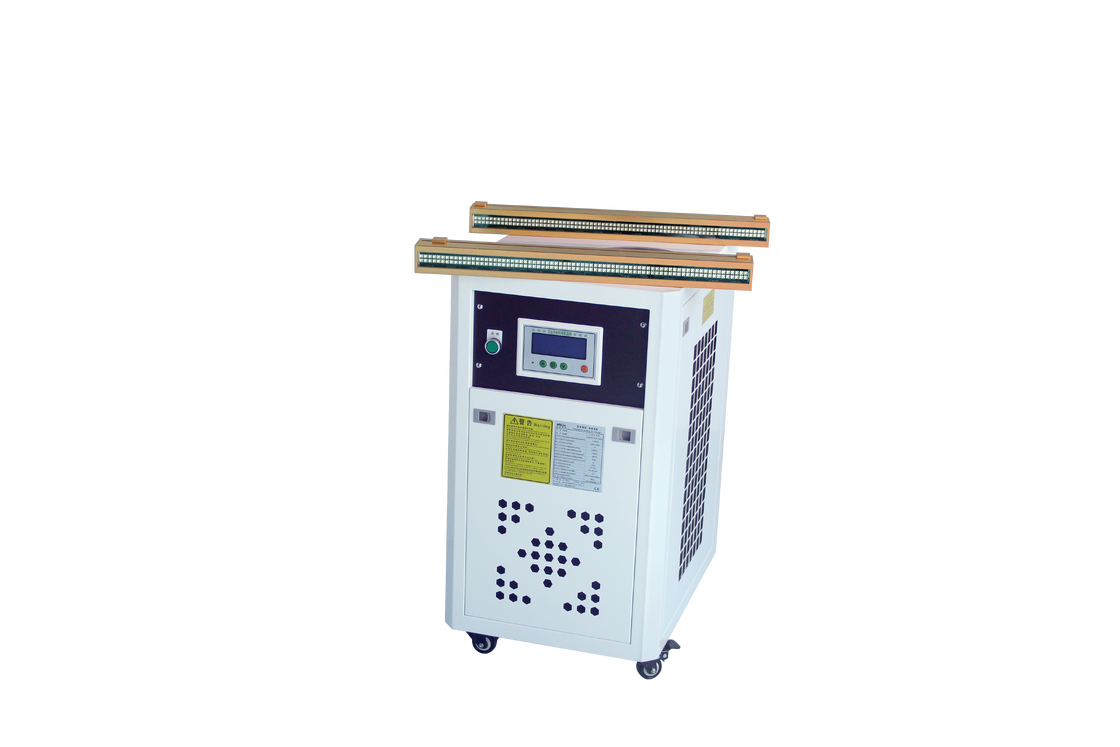

The CG-CT2-20045-1200A/C UV LED curing platform is designed for applications requiring high UV intensity and stable continuous operation.
Core Specifications
| Parameter |
Specification |
| Model |
CG-CT2-60027-1200A/C |
| UV Power |
1200W |
| UV Intensity |
Up to 18 W/cm² |
| Wavelength Options |
365 / 385 / 395 / 405nm |
| Cooling |
Water Cooling |
| Input Voltage |
AC 85–265V |
| UV Output Control |
0–100% Adjustable |
| Recommended Working Distance |
30–50mm |
| Emitting Window |
Customizable |
| LED Chip |
LG / Seoul |
| Expected LED Lifetime |
Up to 20,000 hours |
| Certification |
CE / RoHS |
| Warranty |
2 Years |
| Packaging |
Wooden Case |
Actual curing performance depends on coating chemistry, coating thickness, wavelength, working distance, UV dose and production speed. Final configuration should be confirmed through application testing.
Choose the Right Wavelength for Your Wood Coating
Different UV coatings use different photoinitiator systems. Selecting the correct wavelength is therefore critical for achieving reliable curing.
365nm UV LED
Suitable for UV adhesive and specialty curing applications where shorter UVA wavelengths are required.
385nm UV LED
A versatile wavelength for many industrial UV curing formulations.
395nm UV LED
Widely used for UV coatings, inks and general industrial curing applications.
405nm UV LED
Suitable for formulations designed around longer UVA wavelengths and specific photoinitiator systems.
Need help selecting the wavelength?
Send us your UV coating datasheet, photoinitiator information, coating thickness and production speed. Our engineers can recommend the appropriate UV LED wavelength and system configuration.
Engineered for Production-Line Integration
A UV curing system for industrial wood flooring should not simply provide UV light—it needs to work as part of the complete production process.
Water-Cooled Design for High-Duty Production
For high-power industrial applications, thermal management directly affects UV LED stability and lifetime.
The CG water-cooled architecture continuously removes heat from the LED module, helping maintain stable operating conditions during extended production.
Advantages
-
Stable UV output
-
Efficient heat removal
-
Suitable for high-power operation
-
Reduced thermal load on the workpiece
-
Supports continuous production
-
Longer LED operating life
-
Compact installation compared with large conventional drying systems
For demanding high-speed wood coating applications, water-cooled UV LED systems are increasingly being used because they combine high UV dose with controlled thermal performance.
Applications
Timber & Wood Flooring
Designed for UV-curable finishing processes on:
-
Solid hardwood flooring
-
Engineered wood flooring
-
Parquet flooring
-
Bamboo flooring
-
Decorative wood flooring
-
Wood wall panels
-
Wood boards
-
Stair components
-
Wood profiles
Wood-Based Materials
Compatible with production processes involving:
-
MDF
-
HDF
-
Plywood
-
Particleboard
-
Chipboard
-
Veneered panels
-
Decorative panels
UV curing technology is used across wood-based products including flooring, furniture, cabinets, doors, panels and other finished wood components.
Applications Beyond Flooring
The same UV LED platform can also be configured for:
Furniture Coating
UV curing for tables, chairs, cabinets, shelving and other wood furniture.
Door & Window Finishing
Rapid curing of UV primers, sealers and topcoats.
Wood Profile Coating
Suitable for continuous coating and curing of decorative wood profiles and mouldings.
Decorative Panels
For UV coating, varnishing and surface finishing of MDF, HDF and plywood panels.
Adhesive Curing
For selected UV-curable wood bonding and assembly applications.
What Makes CG UV LED Curing Different?
High UV Intensity
Up to 18 W/cm² UV intensity provides the energy density required for demanding industrial curing processes.
Flexible Wavelength Selection
365nm / 385nm / 395nm / 405nm configurations allow the system to be matched to different UV coating formulations.
0–100% Digital Output Control
Adjust UV output according to coating requirements and production speed.
Low Thermal Load
LED UV curing minimizes unnecessary heat transfer compared with traditional thermal drying approaches.
This is particularly valuable for wood substrates where excessive heat can affect surface appearance, dimensional stability or coating performance.
Long Operating Life
The UV LED system is designed for long-term industrial operation with a stated LED lifetime of up to 20,000 hours.
Instant Start
No warm-up period. Start curing immediately when production begins.
Custom Emitting Area
The emitting window can be customized according to the required curing width and machine layout.
Need to Upgrade Your Wood Flooring Production Line?
If you are currently using:
we can evaluate your current process and recommend a suitable UV LED configuration.
Send us these 5 parameters:
-
1. Wood substrate
-
2. UV coating / varnish type
-
3. Coating thickness
-
4. Production speed
-
5. Required curing width
We can then recommend the appropriate UV wavelength, UV intensity, emitting area, cooling method and system configuration.
Frequently Asked Questions
Q1: Can this UV LED system cure wood flooring coatings?
Yes. It is designed for UV-curable coatings, varnishes, sealers, primers and selected UV adhesives used on wood and wood-based materials.
Q2: Which wavelength is best for wood flooring?
There is no universal wavelength. The correct wavelength depends on the coating formulation and photoinitiator. 365nm, 385nm, 395nm and 405nm options are available.
Q3: Can the UV intensity be adjusted?
Yes. The UV output can be adjusted from 0–100%, allowing the curing process to be matched to different coatings and production conditions.
Q4: Does the UV LED system generate a lot of heat?
Compared with conventional UV and thermal curing technologies, UV LED systems provide a lower thermal load and more targeted energy delivery. This can be beneficial when processing wood substrates.
Q5: Can the emitting width be customized?
Yes. The emitting window can be customized according to your production line and curing width requirements.
Q6: Can the system be integrated into an existing flooring line?
Yes. We can customize the UV LED module, cooling system, mounting structure and control interface according to the existing equipment.
Q7: Is water cooling necessary?
For high-power continuous curing applications, water cooling provides efficient thermal management and stable operation. For lower-power applications, air cooling may also be suitable.
Q8: How long is the LED lifetime?
The specified LED lifetime is up to 20,000 hours, depending on operating conditions and thermal management.
Q9: Can you test our wood coating before we purchase?
Yes. Application testing is recommended for industrial UV curing. Send us your coating information and process parameters so we can help determine the appropriate wavelength and curing configuration.
