UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer
UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

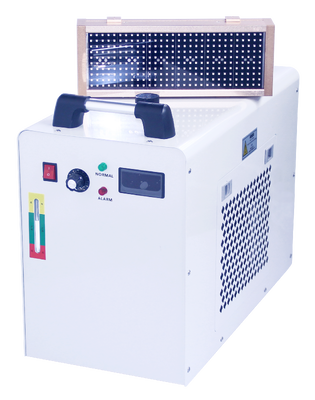

Large Image :  UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

Product Details:
Place of Origin: China
Brand Name: CG
Certification: CE*RoHS
Model Number: CG-CT10-700100-1450A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 2000-2200usd 1 set
Packaging Details: Wooden case
Delivery Time: 10-15 Working days
Payment Terms: L/C,T/T
Supply Ability: 10 SET/DAY

UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

Description
Keyword: LED UV Curing System Power: 1450W
Input Voltage: AC85-265V Wave Length: 395nm
Cooling Way: Water Cooling UV Intensity: 18W/CM2
Warranty: 2 Years Package: Wooden Case
Highlight:

UV LED curing system for lacquer

,

LED UV curing system replacement

,

UV curing system with warranty

UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

High-Intensity, Low-Heat UV Curing for Wood Coatings, Furniture Finishing & Industrial Lacquers

Upgrade conventional mercury and gallium UV curing systems with a high-performance UV LED curing solution engineered for UV lacquer, UV varnish, wood coatings and industrial surface finishing.

Our water-cooled UV LED curing system delivers concentrated UV energy at selected wavelengths such as 365nm, 385nm, 395nm and 405nm, helping manufacturers achieve fast and consistent polymerization while reducing heat input, lamp maintenance and energy consumption.

Designed for integration into existing production lines, the system can be customized according to curing width, working distance, UV dose, wavelength, installation space and production speed.

LED UV Curing System Datasheet

ModelCG-CT10-700100-1450Alamp colorRose golden
Power1450WChip brandLG/Seoul
Input voltageAC85-265VWave length365/385/395/405nm
ApplicationUV ink/vanish/coating /adhesive curingLife span20000H
Cooling wayWater coolingEmitting window sizecustomized
UV intensity18W/CM2Dimmable0%-100%
Best emitting distance30-50mmPackagewooden case

LED UV Curing System Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink cuing .
  5. Long lifespan, 20000hours .

UV LED Curing System to Replace Mercury & Gallium Lamps for UV LacquerUV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer UV LED Curing System to Replace Mercury & Gallium Lamps for UV Lacquer

Designed for UV Lacquer & Coating Applications

The UV LED curing system can be integrated into a variety of coating and finishing processes.

Wood & Furniture

  • UV wood lacquer
  • UV furniture coating
  • MDF coating
  • Wood flooring coating
  • Veneer finishing
  • Cabinet finishing
  • Decorative panels

Industrial Coatings

  • Protective coatings
  • Clear coats
  • Plastic coatings
  • Metal coatings
  • Decorative coatings
  • Functional coatings

Printing & Finishing

  • UV varnish
  • UV ink
  • Label finishing
  • Packaging coating
  • Digital printing
  • Screen printing

Frequently Asked Questions

Q1. Can UV LED completely replace a mercury or gallium UV lamp?

It can replace conventional lamps in suitable applications, but compatibility must be evaluated based on the lacquer formulation, photoinitiator, wavelength, coating thickness and required UV dose.

Q2. Which wavelength is best for UV lacquer?

There is no universal wavelength. 365nm, 385nm, 395nm and 405nm can be selected according to the photoinitiator and lacquer formulation.

Q3. Can the system cure UV wood lacquer?

Yes. UV LED curing is suitable for many LED-compatible UV wood lacquers, furniture coatings and UV varnishes.

Q4. Does UV LED generate heat?

The LED module generates heat and therefore requires thermal management. However, compared with conventional UV arc lamps, UV LED systems can significantly reduce unwanted infrared radiation reaching the substrate.

Q5. Can I use my existing production line?

Yes. The UV LED curing head can be customized for retrofit integration into existing coating or printing equipment.

Q6. Can the UV intensity be adjusted?

Yes. The system supports 0–100% intensity adjustment, depending on the selected control configuration.

Q7. What is the expected LED lifetime?

The standard design is rated for up to 20,000 hours, depending on operating conditions, thermal management and power settings.

Q8. What cooling method is available?

High-power systems typically use water cooling. Air-cooled configurations are also available for suitable power levels and applications.

Q9. Can you test our UV lacquer before we purchase?

Yes. For critical retrofit projects, customers can provide the UV lacquer specification and application parameters. Sample testing can be arranged to evaluate wavelength, irradiance and curing performance.

Q10. Can you customize the curing width?

Yes. The emitting window, curing width, wavelength combination, power and installation structure can be customized according to your production line.
