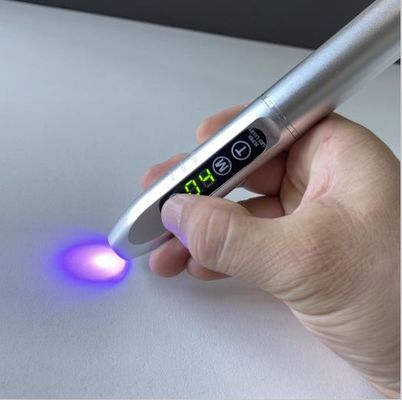

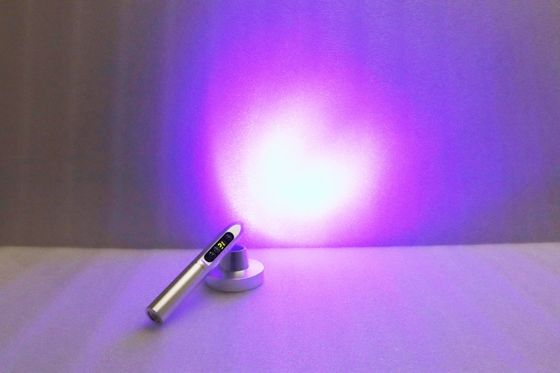

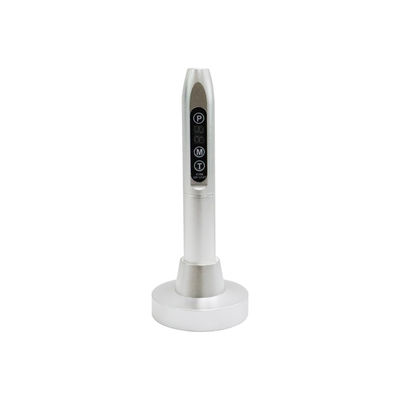

UV Pen Light 365nm Longwave Handheld UV Flashlight 5W Epistar Chip for UV Adhesive Curing

365nm UV Pen Light for UV Adhesive Curing

This UV pen light is a compact 365nm longwave LED UV flashlight built for precision UV adhesive curing. A single 5W Epistar chip behind a quartz lens delivers high-intensity longwave UV at a 15-20mm working distance, so a small drop of UV glue, resin or coating reaches full cure in seconds. The pen-style aluminium body with pocket clip keeps the torch in a technician's shirt pocket, and the instant on/off driver removes the warm-up wait of mercury lamps completely.

Datasheet

Why technicians choose this UV pen light

• True 365nm longwave output: the wavelength UV adhesives and UV resins are formulated to absorb, so curing is fast and deep instead of surface-only.
• Instant on and instant off: no warm-up, no shutter, no waiting between bonding steps on a production bench.
• Mercury free and ozone free: no mercury vapour, no ozone generation and no VOC discharge, safe for indoor assembly rooms.
• Low temperature operation: the air-cooled head stays cool enough to cure PE film inks and heat-sensitive substrates without warping.
• Energy saving: normally 1000W of conventional LED UV equals the drying effect of a 6000W mercury lamp.
• Long service life: 10000 hours rated LED lifespan with a 1-year warranty.

Typical applications

• UV adhesive curing for lens bonding, optical assembly and small component fixing
• UV glue, UV resin and UV coating touch-up in electronics and medical device assembly
• Spot curing where a lamp housing cannot reach, such as inside frames and jigs
• UV ink, varnish and conformal coating spot drying on small areas
• Laboratory R&D verification of UV adhesive cure speed and depth

FAQ

Q1: What is the difference between the 365nm and 395nm version?
365nm is the longwave band UV adhesives are formulated for and is the preferred choice for bonding and resin curing. 385nm, 395nm and 405nm are available for printing inks and coatings.

Q2: What LED chip do you use?
Epistar chips, mounted on an aluminium heat sink with air cooling.

Q3: What are the lamp body and lens made of?
Aluminium body with a quartz lens, which passes longwave UV with very low loss.

Q4: Can the UV intensity be adjusted?
The standard model is not dimmable. Cure energy is controlled by exposure time and working distance, with 15-20mm being the recommended emitting distance.

Q5: Do you support OEM and ODM?
Yes. Logo, packaging, wavelength and cable or plug configuration can be customised for volume orders.

Order information

MOQ 1 set, USD 100-120 per set, T/T or L/C, 2-3 working days for stock units, supply ability 100 sets per day. Send us your adhesive type, cure area and required cure time and we will confirm the matching wavelength and model.
