CG-GHL-W400-360x27-A/C Water Cooled LED UV Curing Conveyor 1500W 18W/cm2 Four Wavelength Options for Lab Ink Glue Drying

Water Cooled LED UV Curing Conveyor 1500W 18W/cm2, Four Wavelength Options

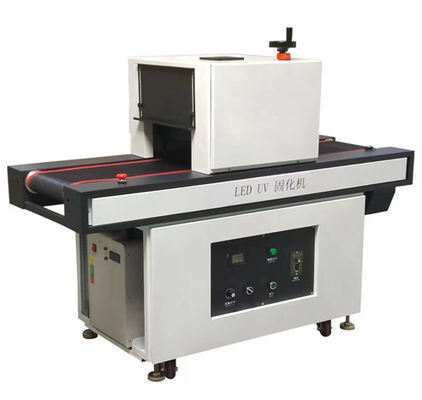

The CG-GHL-W400-360x27-A/C is a water cooled LED UV curing conveyor for laboratory trials and high volume production alike. A 1500W LED array delivers 18W/cm2 through a 360x27mm quartz window, the integrated belt conveyor runs at adjustable speed, and intensity is dimmable from 0 to 100%, so one machine covers low dose sampling and continuous full power curing. The head is built to a single fixed wavelength with no switching on site, and you choose one of four options at order - 365nm for adhesive and potting compound, or 385nm / 395nm / 405nm for printing ink and varnish - with the LED array binned and calibrated for the wavelength selected.

Key Advantages

• 18W per square cm high intensity: 1500W optical output over a 360x27mm window cures thick ink and filled adhesive in a single pass, matching the throughput of a 6kW mercury dryer.
• Four wavelength options at order: Pick 365nm for adhesive and potting compound, 385nm, 395nm or 405nm for printing ink and varnish; each unit is fixed to the one wavelength you choose and binned for that peak.

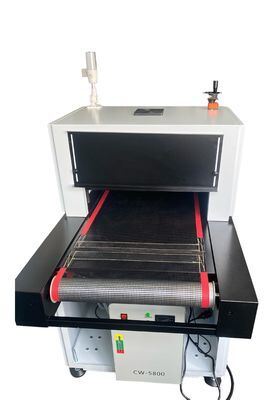

• Adjustable speed conveyor: The belt conveyor feeds parts through the curing zone at the speed your dose requires, so short lab runs and continuous high volume output share one platform.
• 0-100% dimmable output: Intensity is adjustable from a single low dose trial to full power production, with no warm-up and no shutter lag; PLC or 0-10V dimming keeps dose constant when line speed changes.
• Water cooled closed loop: Matched chiller and flow alarm hold output stable through long shifts, protecting the LED array and keeping cure depth repeatable.
• 360x27mm narrow emitting window: The elongated window concentrates dose on the web or bond line and limits heat load on thin film, PE and heat-sensitive substrates.
• Mercury free, CE and RoHS: No mercury, no ozone and no VOC discharge, with a 20000 hour LED lifespan and 2 year system warranty.

Technical Specifications

Applications

Laboratory and pilot-line curing of UV ink, varnish, coating and adhesive; high volume conveyor curing of silk screen and pad printing ink; UV glue bonding for optics, electronics and glassware; resin and potting compound curing; and photocatalysis work that needs a stable high intensity UV source. The four wavelength options let one model cover adhesive, ink and coating processes across different production lines.

Why Choose Us

Shenzhen Super Curing Opto Electronic has built UV LED curing heads, conveyors, drivers and chillers since 2012. Each 1500W head is aged at full output and shipped with an optical measurement report, and air cooled and water cooled systems share one platform, so spare parts and service stay consistent as your production grows.

Order Information

Customer Testimonials

Tell us your substrate, required dose and throughput and our engineers will confirm the emitting window, conveyor speed range, wavelength option and chiller size within 24 hours.
