3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant

3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant
3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant 3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant 3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant

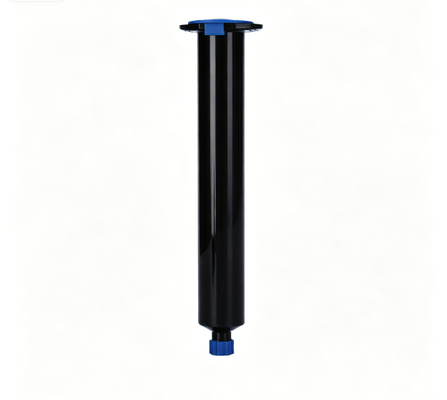

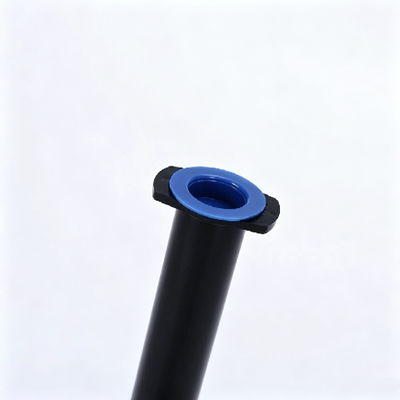

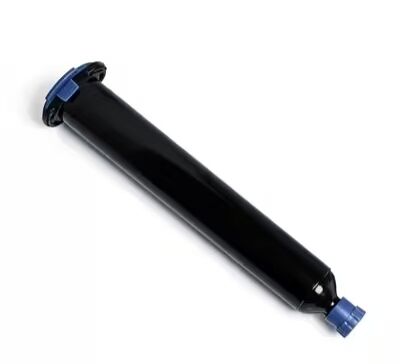

Large Image :  3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant

Product Details:
Place of Origin: China
Brand Name: SuperCuring
Certification: CE, RoHS
Model Number: 3311-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: 49.9USD
Packaging Details: 1 kg HDPE Bottle
Delivery Time: 5-8working days
Payment Terms: L/C,T/T
Supply Ability: 100units/day
Contact Now

3311-2Z Medical Injection Needle UV Adhesive - Low Viscosity, High Strength, Fast Curing UV Curable Glue for Plastic-to-Metal Bonding, Impact and Aging Resistant

Description
Highlight:

Medical Injection Needle UV Adhesive

,

Low Viscosity Fast Curing Glue

,

Plastic-to-Metal Bonding UV Adhesive

1. 产品概述

3311-2Z 是一款单组分紫外光固化胶粘剂,专为医用注射针固定而开发.其低粘度使其能够轻松流入金属针头和塑料针座之间的狭窄缝隙,并在紫外光照射下快速固化,形成牢固,抗冲击且耐老化的粘合层.它也适用于其他塑料与金属的粘合应用.

2. 主要特点
  • 低粘度:易于流入细小的粘合缝隙.提供两种粘度等级(550±100 mPa·s 和 1500±300 mPa·s),以满足不同的点胶和缝隙填充需求.
  • 高强度:抗拉强度达 15 MPa,可实现可靠的塑料与金属粘合.
  • 快速固化:采用 700 mJ/cm² 的紫外线能量进行固化,支持高速生产线.
  • 抗冲击和抗老化:该粘合剂在冲击下和随着时间的推移仍保持可靠.
  • 中等硬度和Tg:邵氏D 58,Tg​​ ​​50℃.
  • 荧光可选:透明粘合剂可添加荧光添加剂,有助于检查胶线.
  • 保质期长:在 8–28°C 下储存可保存 12 个月.
3. 典型应用
  • 将注射针固定到塑料针座上
  • 医用耗材中的塑料与金属粘合
  • 其他需要快速固化,低粘度粘合剂的塑料和金属组装
4. 技术规格
物品 价值
模型 3311-2Z
产品类型 注射针 UV粘合剂
颜色 透明/荧光可选
25℃时的粘度 550±100,1500±300 mPa·s
治愈条件 700 mJ/cm²
硬度(邵氏D) 58
玻璃化转变温度(Tg) 50℃
抗拉强度 15兆帕
保质期 12 个月(8-28°C)
包裹 50g/300g/1000g
5. 使用指南
  1. 确保粘合面清洁干燥.
  2. 将粘合剂涂抹在粘合区域.选择适合您的涂抹方法和间隙大小的粘度等级.
  3. 将零件组装起来,并将粘合剂线暴露在紫外线下,直到固化能量达到 700 mJ/cm².
  4. 在进行下一步工序之前,请确保粘合剂已完全固化.

请在生产前先在您自己的基材和设备上进行试验.

6. 储存和保质期
  • 储存温度为 8-28°C.
  • 保质期为12个月.
  • 保持容器密闭,并避免紫外线和强光照射.
7. 包装

每单位1公斤.

8. 相关医疗系列产品

3311-2V(通用型),3311-2A(喉罩型),3311-2M(麻醉面罩型),3311-2D 和 3311-2T​​(塑料粘合型),3311-2S(紫外线+湿气型).请联系我们索取产品数据表和样品.
