Industrial Water Cooled UV LED Curing System 2700W 18W cm2 Irradiance 365nm 385nm 395nm 405nm

Built for high-speed manufacturing, this industrial water-cooled UV LED curing system delivers up to 18W/cm² peak irradiance with excellent thermal stability, so UV output stays constant through continuous 24/7 production. The package combines a 2700W UV LED irradiation head, an intelligent touch screen controller and an industrial water chiller — a direct, mercury-free replacement for conventional UV lamp tunnels on printing, coating and adhesive lines.

Why This Water-Cooled UV LED System

• Peak irradiance up to 18W/cm² at 30-50mm working distance
• Continuous 24/7 duty cycle with stable water cooling

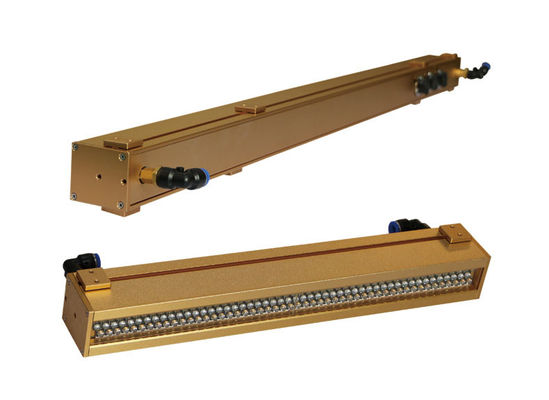

• 2700W output in a compact rose golden lamp head
• Instant ON/OFF switching, no warm-up and no shutter delay
• No mercury, no ozone, low heat radiation on the substrate
• 20000 hours LED lifetime lowers lamp replacement cost
• Digital dimming 0%-100% for thin coating and heat-sensitive parts
• OEM & ODM customization of emitting window size

Technical Datasheet

Intelligent Touch Screen Control

The integrated control cabinet keeps operation simple: touch screen operation, digital power adjustment, real-time system monitoring, UV intensity setting, water cooling monitoring, fault alarm protection, external signal control and PLC integration for automated production lines.

Wavelength Selection Guide

• 365nm — optical and medical adhesives
• 385nm — specialty coatings
• 395nm — UV inks, coatings and printing
• 405nm — UV resin and electronics

Typical Applications

• Printing: flexographic, offset, screen, digital inkjet, label and packaging printing
• Coating: wood, plastic, metal, decorative and protective coating
• Electronics: PCB assembly, camera module bonding, sensor packaging, connector sealing, semiconductor packaging
• Adhesive bonding: glass bonding, optical lens assembly, medical device manufacturing, display bonding, automotive electronics

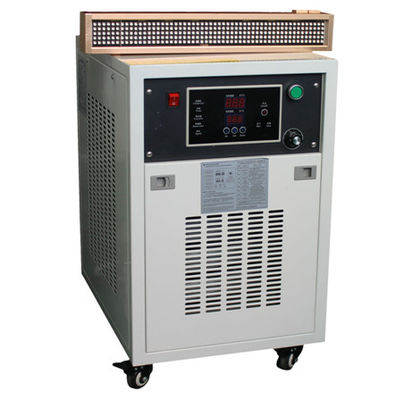

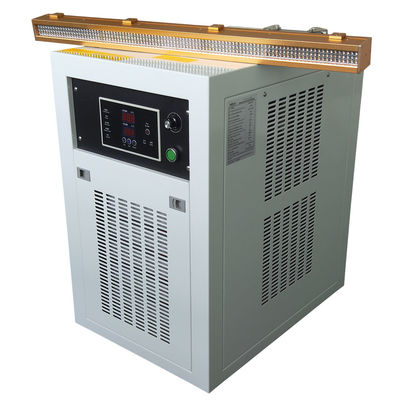

System Gallery

FAQ

Q: Is the irradiation size customizable?

A: Yes. Both irradiation length and emitting window size can be customized to your production line.

Q: Can this system replace mercury UV lamps?

A: Yes. It is designed as a high-efficiency replacement for conventional mercury UV curing systems in printing, coating and adhesive applications.

Q: Does the system support continuous production?

A: Yes. The industrial water cooling system keeps UV output stable during continuous 24/7 operation.

Q: Is water or air cooling available?

A: Both water cooling and air cooling versions are available; this model uses water cooling.
