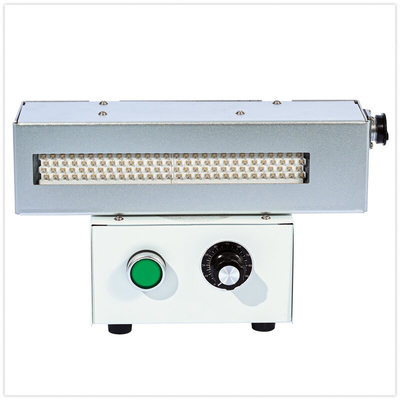

Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling

Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling
Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling

Large Image :  Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling

Product Details:
Place of Origin: China
Brand Name: CG
Certification: CE*RoHS
Model Number: CG-SCS-200*20-300A/C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 500-680usd 1 set
Packaging Details: Wooden case
Delivery Time: 10-15 Working days
Payment Terms: L/C, T/T
Supply Ability: 10 SET/DAY
Contact Now

Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling

Description
Keyword: UV Curing Light Power: 300W
Input Voltage: AC85-265V Wave Length: 365nm
Cooling Way: Air Cooling UV Intensity: 2W/CM2
Warranty: 1years Package: Wooden Case
Weight: 5.5KG
Highlight:

Industrial Portable UV LED Curing Lamp

,

2W/CM2 UV LED Curing Lamp

,

Air Cooling uv led curing lamps

Furniture Industrial Portable UV LED Curing Lamp With Air Cooling​



UV Curing Light Description



" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .



UV Curing Light​ Datasheet



       Model



 CG-SCS-200*20-300A/C lamp color

White/black



       Power



 300W

Chip brand

LG/Seoul



    Input voltage



  AC85-265V

Wave length

365/385/395/405nm



    Application



 UV ink/vanish/coating /adhesive curing

Life span

20000H



  Cooling way



  Air cooling

Emitting window size

 200*20mm



   UV intensity



 2W/CM2

Dimmable

 0%-100%



     Weight



 5.5KG Package wooden case



UV Curing Light​ Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink cuing .
  5. Long lifespan, 20000hours .

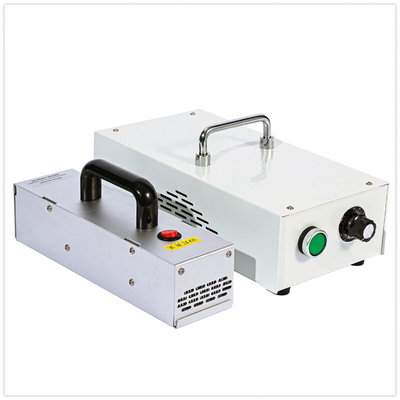

Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling 0





Furniture Industrial Portable UV LED Curing Lamp AC85-265V 2W/CM2 With Air Cooling 1



UV Curing Light​ FAQ:



Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.



Q2: What’s your led brand ?

A2: LG/Seoul



Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz



Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling



Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%



Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.



Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
