Multi Channel UV LED Spot Curing System 4CH 365nm 395nm Simultaneous Cure for Small Parts Adhesive

Product Overview

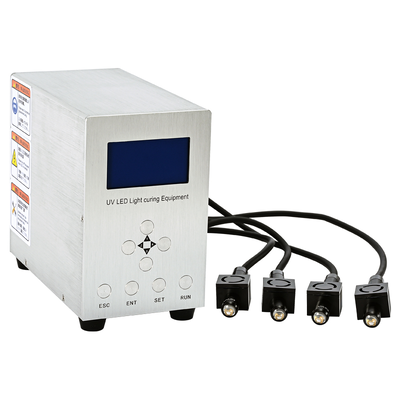

The multi channel UV LED spot curing system drives up to four independent fibre-coupled light heads from one controller. Each channel carries its own wavelength (365nm, 385nm, 395nm or 405nm) and its own intensity setting, and all channels can fire at the same time. That means a fixture holding several small parts, or one part bonded with a dual-cure adhesive, finishes in a single cycle instead of being run through the lamp one wavelength at a time.

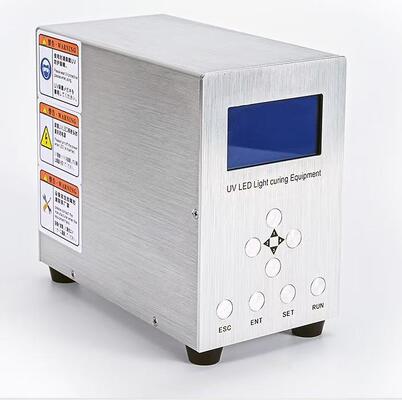

Every channel is addressed separately on the LCD panel or from the PLC, so a 365nm surface tack and a 395nm through-cure can be combined on the same station. Small parts such as camera module lenses, voice coil motors, sensor housings, syringe needles and micro PCB components are cured with low heat load and repeatable dose.

Key Features

• Four independent channels - each channel has its own wavelength, intensity and timer setting
• Simultaneous multi-wavelength curing - 365nm, 385nm, 395nm and 405nm outputs can be triggered in the same cycle
• Separate dose per channel - match the wavelength to each adhesive in a mixed bond instead of compromising on one
• Low heat output - cold UV LED light protects lens coatings, plastic housings and flexible circuits
• Adjustable 0-100 percent intensity per channel, from surface tack to full cure
• PLC and I/O trigger - each channel can be switched by the machine sequence for inline production
• Air cooled LED heads with lifetime above 20,000 hours and no mercury bulb replacement
• Compact controller that fits cleanroom benches and semi-automatic small parts stations

Technical Specifications

Typical Applications

• Camera module and phone lens adhesive bonding
• Voice coil motor, speaker and micro actuator assembly
• Small PCB component fixing and encapsulation
• Sensor and connector potting with dual-cure adhesives
• Syringe needle and medical disposables bonding
• Laboratory and repair bench UV adhesive testing

Why Choose This System

One controller, four wavelengths, one cycle. Operators stop swapping lamps or moving parts between stations when an assembly uses more than one adhesive chemistry. Because each channel keeps its own calibrated intensity, the dose delivered to the 365nm tack layer and the 395nm deep cure stays stable from the first part to the last part of the shift, so cycle time is set once and repeated.

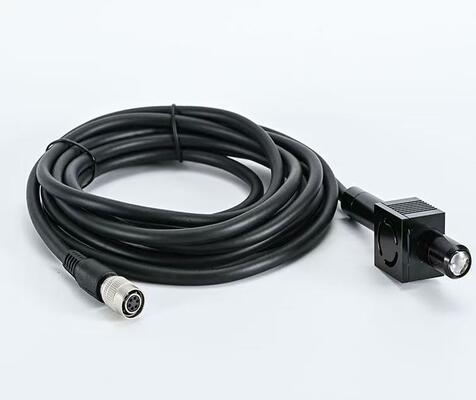

The spot heads deliver energy only to the bond point, so nearby lenses, coatings and flex circuits are not exposed to the heat load of a mercury spot lamp. Fibre light guides can be sized from 3mm to 8mm to match the bond area, and heads can be mounted on the fixture or on a robot arm.

Ordering Information

Tell us your adhesive cure wavelength, number of bond points, spot diameter and target cycle time. We will configure the channel count, wavelength mix, light guide size, intensity range and trigger cable for your station. Standard housing is silver anodized aluminum; black, white and OEM brand colours are available on request.
