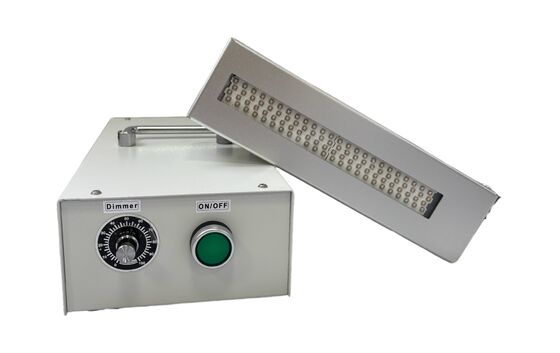

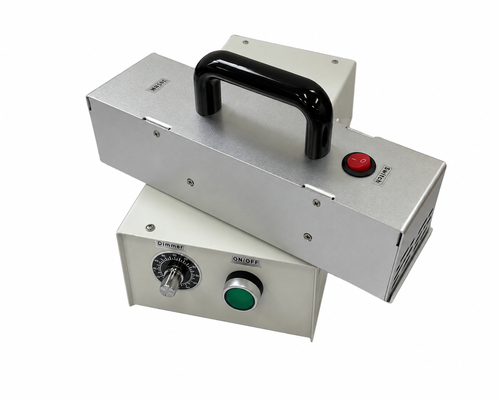

Handheld UV LED Lamp for Wood Furniture UV Coating，UV Lacquer & Furniture Finishing

Speed up wood finishing and furniture production with a high-performance Handheld UV LED Lamp designed for curing compatible UV coatings, UV lacquer, varnish and protective finishes.

This 300W air-cooled UV LED curing lamp delivers controlled UV output through a compact 200 * 20mm emitting window, making it suitable for localized curing, repair, edge treatment, small-batch production and areas that are difficult to reach with conventional UV curing equipment.

Available in 365nm, 385nm, 395nm and 405nm, the system can be matched to different UV-curable coating formulations and photoinitiator systems.

With 0–100% adjustable UV intensity, instant ON/OFF operation, low-temperature curing and up to 20,000 hours of LED life, it provides a flexible solution for professional wood and furniture finishing.

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and VOC discharge.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink cuing .
5. Long lifespan, 20000hours .

The UV LED lamp can be used for compatible UV-curable coatings applied to:

• Solid wood
• MDF
• HDF
• Veneer
• Plywood
• Wood flooring
• Furniture panels
• Cabinets
• Doors
• Tables
• Chairs
• Decorative wood products
• Wooden handicrafts

Typical coating applications include:

• UV wood lacquer
• UV furniture coating
• UV varnish
• UV clear coat
• UV protective coating
• UV decorative coating
• UV topcoat
• UV finishing coating

Actual curing performance depends on the coating formulation, photoinitiator, coating thickness, UV wavelength, irradiance and exposure time.

The handheld design is not limited to new furniture production.

It can also be used for:

• Furniture refinishing
• Coating repair
• Scratch repair
• Local clear-coat curing
• Surface touch-up
• Decorative coating repair
• Prototype finishing
• Custom furniture production

For repair applications, the operator can cure only the repaired coating area instead of exposing the entire furniture surface to UV.

• Tables
• Chairs
• Cabinets
• Doors
• Shelves
• Furniture panels
• Decorative furniture

• Flooring boards
• Engineered wood
• Decorative flooring
• Local coating repair

• UV lacquer
• UV varnish
• UV clear coat
• UV protective coating

• Wood handicrafts
• Decorative panels
• Wooden accessories
• Customized wood products

• MDF
• HDF
• Veneer
• Plywood
• Laminated wood products

Yes, it is designed for compatible UV-curable coatings, UV lacquer, varnish and protective coatings used on wood and furniture.

There is no universal wavelength. 365nm, 385nm, 395nm and 405nm are available. The correct wavelength should match the photoinitiator in the coating.

The referenced model is 300W with UV irradiance up to approximately 2W/cm², depending on configuration and measurement conditions.

The listed best emitting distance is approximately 30–50mm. Actual optimum distance should be established through application testing.

The product is designed as a portable/handheld UV curing configuration for flexible operation. For extended production use, we can also customize mounting structures or fixed installations.

No. This 300W configuration uses air cooling, so an external water chiller is not required.

Yes. The UV intensity can be adjusted from 0–100%.

The product is designed for up to 20,000 hours of LED life under suitable operating conditions.

Yes, provided that the clear lacquer is compatible with the selected UV wavelength and the required UV dose can be achieved.

Yes. We can customize wavelength, power, emitting area, intensity, cooling and mechanical configuration according to your requirements.
