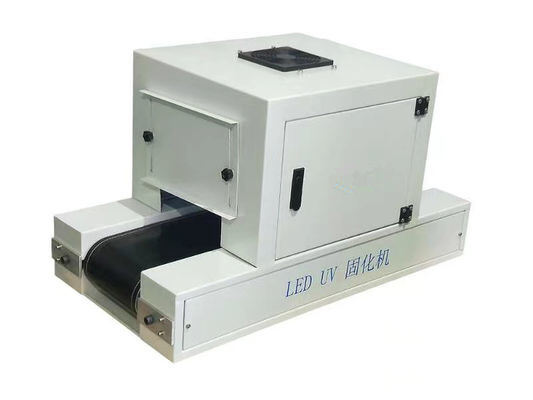

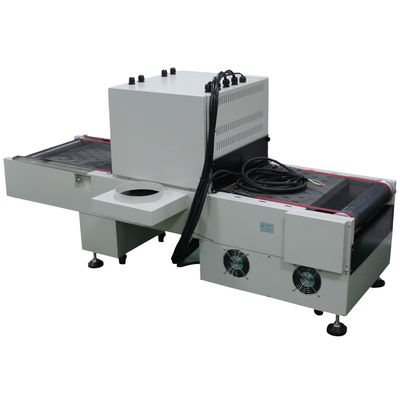

365nm 1500W Water Cooling LED UV Curing Conveyor Equipment for Lab Ink and Glue Drying
This laboratory-grade conveyor type UV LED curing system delivers 1500W of stable 365nm ultraviolet energy through a water-cooled lamp head and a 300mm wide variable-speed belt. It cures UV ink, varnish, coating and adhesive in seconds, making it the ideal bench-scale machine for lab trials, sample approval and small-batch production where repeatable results matter more than throughput.
Key Advantages
- Water cooling keeps the LED chip below the safety threshold for continuous 24-hour operation
- 1500W LED output matches the drying effect of a 6000W mercury lamp while using far less power
- Instant on and off, no warm-up and no shutter, so trial runs start in one second
- Zero mercury, no ozone and no VOC discharge, safe for a closed laboratory environment
- Stepless dimming from 0% to 100% for precise energy control on thin film and heat sensitive substrates
- Variable-speed conveyor from 0.5 to 5 m/min for repeatable lab-to-production scale up
- 20,000 hour LED lifespan with a 2-year system warranty on head, chiller and power supply
Technical Specifications
| Model | CG-GHL-W400-360*27-W |
| Power | 1500W |
| Input Voltage | AC85-265V, 50/60Hz |
| Wavelength | 365nm (385/395/405nm optional) |
| Cooling Method | Water cooling with matching chiller |
| UV Intensity | 18W/CM2 at 30mm |
| Best Emitting Distance | 30-50mm |
| Emitting Window | 360x27mm, customizable |
| Conveyor Belt Width | 300mm, variable speed 0.5-5 m/min |
| Dimming | 0%-100% stepless |
| LED Chip Brand | LG / Seoul |
| LED Lifespan | 20,000 hours |
| Lamp Housing Colour | Rose gold or silver |
| Warranty | 2 years |
| Package | Export wooden case |
Typical Applications
- Laboratory ink, varnish and coating curing trials
- UV adhesive and resin bonding of glass, plastic and electronic parts
- Sample proofing for label, packaging and inkjet printing
- Small batch production of optical components and sensors
- 3D printing resin post-curing and surface hardening
Working Principle
The system uses high-power UV LED chips to emit a stable narrow-band ultraviolet beam. The conveyor carries the workpiece under the lamp head at a constant speed, and the UV energy instantly triggers the photo-initiator inside ink, varnish, coating or adhesive so curing completes within seconds. Because no mercury lamp is used, there is no warm-up time, no ozone, no VOC discharge and no substrate heat damage.
Why Choose This Water Cooling System
Water cooling keeps the LED junction temperature low even at continuous full power, so output stays stable shift after shift and the chip lifespan reaches up to 20,000 hours. A separate chiller is supplied with the machine, and the lamp head can be aimed upward, downward or sideways to fit your existing line layout. UV intensity is fully adjustable from 0% to 100%, letting you match the exact energy your ink or glue needs and avoid over-curing.
Customisation & Service
Emitting window size, belt width, wavelength (365nm, 385nm, 395nm or 405nm) and lamp colour are all configurable. OEM and ODM orders are welcome. Every unit is aged and tested before packing, and we provide a 2-year warranty covering the LED head, chiller and power supply, plus remote technical support for installation and process tuning.
FAQ
Q: What wavelength should I choose?
A: 365nm suits adhesives and resins, while 385nm, 395nm and 405nm are normally used for UV ink and varnish printing.
Q: What is the best curing distance?
A: Keep the lamp head 30 to 50mm away from the substrate for the highest energy density.
Q: How do I order?
A: Tell us your material, curing width and line speed, and our engineers will recommend the matching power and belt width, then send a formal quotation.
