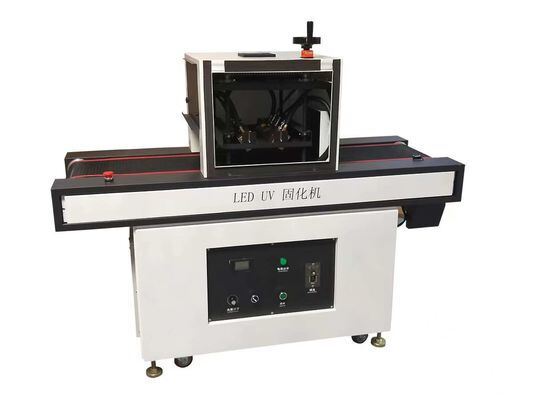

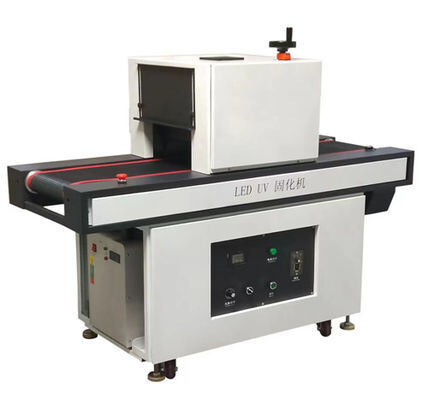

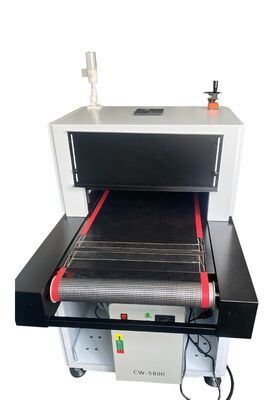

365nm 2000W Water Cooling LED UV Curing Conveyor System for Coating and Adhesive Curing
Built for continuous production lines, this 2000W water-cooled UV LED conveyor system spreads high-density 365nm energy across a 500mm wide belt. It cures UV coating, varnish and adhesive at line speeds up to 10 m/min without heat distortion, and the modular lamp head can be mounted above, below or at the side of an existing conveyor.
Key Advantages
- 2000W high power head with dual water cooling loop for full-load continuous running
- 500mm wide treatment area handles wide format coating, film and panel workpieces
- Line speed up to 10 m/min shortens curing cycle and lifts output per shift
- Energy saving design, one 1000W LED head replaces a 6000W mercury lamp in drying effect
- No mercury, no ozone and no VOC discharge, compliant with CE and RoHS requirements
- Low temperature curing protects PE film, thin plastic and heat sensitive substrates
- 20,000 hour lifespan, instant start and 0%-100% dimming for process flexibility
Technical Specifications
| Model | CG-GHL-W600-360*40-W |
| Power | 2000W |
| Input Voltage | AC85-265V, 50/60Hz |
| Wavelength | 365nm (385/395/405nm optional) |
| Cooling Method | Dual loop water cooling with matching chiller |
| UV Intensity | 18W/CM2 at 30mm |
| Best Emitting Distance | 30-50mm |
| Emitting Window | 600x40mm, customizable |
| Conveyor Belt Width | 500mm, variable speed 0.5-10 m/min |
| Dimming | 0%-100% stepless |
| LED Chip Brand | LG / Seoul |
| LED Lifespan | 20,000 hours |
| Lamp Housing Colour | Rose gold or silver |
| Warranty | 2 years |
| Package | Export wooden case |
Typical Applications
- UV coating and varnish curing on wood panels, film and metal sheet
- Adhesive curing for laminating, bonding and assembly lines
- Flexographic, screen and digital printing ink drying
- Electronic component conformal coating hardening
- Automotive and appliance part surface finishing
Working Principle
The system uses high-power UV LED chips to emit a stable narrow-band ultraviolet beam. The conveyor carries the workpiece under the lamp head at a constant speed, and the UV energy instantly triggers the photo-initiator inside ink, varnish, coating or adhesive so curing completes within seconds. Because no mercury lamp is used, there is no warm-up time, no ozone, no VOC discharge and no substrate heat damage.
Why Choose This Water Cooling System
Water cooling keeps the LED junction temperature low even at continuous full power, so output stays stable shift after shift and the chip lifespan reaches up to 20,000 hours. A separate chiller is supplied with the machine, and the lamp head can be aimed upward, downward or sideways to fit your existing line layout. UV intensity is fully adjustable from 0% to 100%, letting you match the exact energy your ink or glue needs and avoid over-curing.
Customisation & Service
Emitting window size, belt width, wavelength (365nm, 385nm, 395nm or 405nm) and lamp colour are all configurable. OEM and ODM orders are welcome. Every unit is aged and tested before packing, and we provide a 2-year warranty covering the LED head, chiller and power supply, plus remote technical support for installation and process tuning.
FAQ
Q: What wavelength should I choose?
A: 365nm suits adhesives and resins, while 385nm, 395nm and 405nm are normally used for UV ink and varnish printing.
Q: What is the best curing distance?
A: Keep the lamp head 30 to 50mm away from the substrate for the highest energy density.
Q: How do I order?
A: Tell us your material, curing width and line speed, and our engineers will recommend the matching power and belt width, then send a formal quotation.
