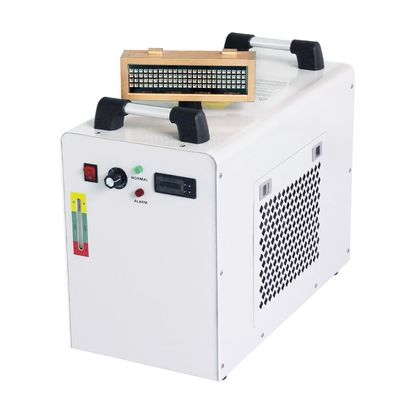

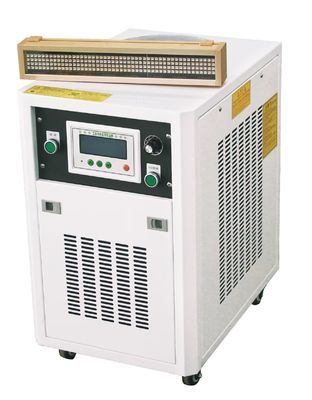

395nm UV LED Curing Equipment with Water Cooling and 18W/cm² Intensity for Precision Bonding

Large Image : 395nm UV LED Curing Equipment with Water Cooling and 18W/cm² Intensity for Precision Bonding

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-40027-1500A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2500-3000usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

395nm UV LED Curing Equipment with Water Cooling and 18W/cm² Intensity for Precision Bonding

Description

Keyword:	UV LED Curing Equipment	Power:	1500W
Input Voltage:	AC85-265V	Wave Length:	395nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	OEM UV Light Curing Machine , 50mm UV LED Curing Equipment , 1000w UV LED Curing Equipment

1000W UV LED Curing Equipment | 395nm Cold UV Light Machine for Precision Lens & PCB Adhesive Bonding

Product Overview

Our industrial-grade 1000W UV LED Curing System is engineered for high-speed continuous manufacturing lines. Featuring advanced water-cooling technology and a high-peak irradiance of 18W/cm², this robust system delivers stable, uniform UV-A output at a 50mm optimal emitting distance, making it ideal for high-precision electronic assembly, label printing, and automated adhesive curing.

Technical Specifications

Model	CG-CT3-60027-3500A	Lamp Color	Rose Golden
Power	3500W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Method	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

Key Advantages

High-Peak Irradiance: Delivers up to 18W/cm² at 395nm for instant curing, strong bonding, and maximum production throughput.
Smart PLC & Automation Integration: Equipped with standard industrial I/O signals and PLC communication interfaces for seamless embedding into automated production lines.
Advanced Water-Cooling Architecture: Heavy-duty water cooling ensures excellent thermal management, preventing chip degradation and guaranteeing a lifespan exceeding 20,000 hours.
Eco-Friendly & Cold Light Source: Zero ozone generation and minimal thermal radiation, protecting delicate substrates (like thin films or plastics) from heat deformation.
Flexible OEM/ODM Customization: Tailored emitting windows, alternative wavelengths (365nm/385nm/405nm), and custom mounting designs are available to fit your specific machinery.

Industrial Applications

Electronics & Semiconductors: Fast curing of PCB conformal coatings, underfills, and micro-electronic component encapsulation.
Industrial Printing: High-speed ink curing for digital inkjet, flexo presses, and silk-screen label printing.
Optical Lens Assembly: High-precision bonding of optical components and glass substrates with low thermal impact.
Medical Device Manufacturing: Reliable UV glue curing for catheters, needles, and disposable medical components.

Frequently Asked Questions

What's the wavelength of the LED UV lamp?

Usually 395-405nm. The 395nm/385nm is used for printing machines, 365nm is for adhesive.

What's your LED brand?

LG/Seoul

What's the material of lamp and lens?

Aluminium/quartz

What's the cooling method for the LED UV curing system?

Water or air cooling

Can the UV intensity be changed?

Yes, the UV intensity is changeable from 0%-100%

What's the maximum energy of UV LED lamp?

It depends on emitting time - the longer the higher energy output total amount.

What's the lifespan of the UV LED curing lamp?

Our warranty is 2 years for all system (Chiller/power supply), mostly can reach 5 years.
