UV Curing Solution Fast and Effective Drying of UV Resin Ink Varnish Adhesive and Coating with Advanced UV Curing Technology

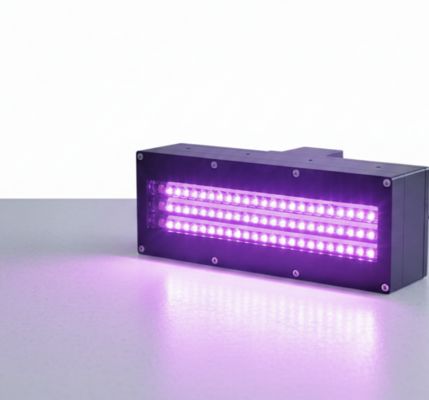

UV Curing Solution UV Light Source High Power UV LED Curing Machine​

UV Curing Solution Description

Today, UV LED technology is recognized as a highly efficient solution for drying a wide range of UV-based materials (including resins, inks, and adhesives). By emitting precise UV radiation, this method completes the curing process at remarkable speeds, consistently delivering products with excellent quality and durability.

UV Curing Solution Datasheet

UV Curing Solution Advantages

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and VOC discharge.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink cuing .
5. Long lifespan, 20000hours .

UV Curing Solution  FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2: LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
