AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system

Name: AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-CT3-40027-1500A/C
Price: 750.00 USD
Availability: InStock

All Products

LED UV Curing System
(50)

UV LED Curing Equipment
(74)

LED UV Curing Lamp
(30)

UV Curing Solution
(31)

UV Curing Light
(28)

UV Curing Conveyor Systems
(37)

UV Curing Chamber
(40)

LED UV Flashlight
(23)

Ultraviolet Black Light
(18)

UV Dryer Machine
(23)

Hand Held UV Lamp
(31)

Sterilizing lamp
(10)

Certification

Customer Reviews

We have cooperation for long long time ,it's a good experience .

—— Mike

Sincerely hope to we can cooperation next time soon.

—— Bok

I like your leduv flashlight very much it's hand-held and operation very easy.

—— Christophe

The UV lamp greatly improves the efficiency of our screen printing machine, it's great!

—— Alfie

I'm Online Chat Now

AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system

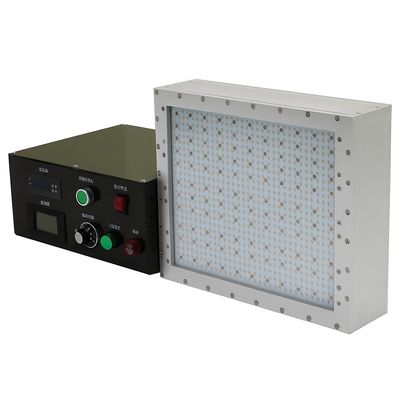

Large Image : AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-40027-1500A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	1500-1800usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system

Description

Keyword:	LED UV Curing System	Power:	600W
Input Voltage:	AC85-265V	Wave Length:	395nm
Cooling Way:	Air Cooling	UV Intensity:	2W/CM2
Warranty:	1 Years	Package:	Wooden Case
Light Intensity:	Adjustable	Cooling Method:	Air Cooling
Curing Temperature:	Room Temperature
Highlight:	800W LED UV curing system , AC220V UV ink drying system , quartz lens UV curing system

Quartz Lens AC220V 800W Led Curing Ultraviolet Light For Led UV Ink Drying System

LED UV Curing System Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

LED UV Curing System Datasheet

Model	CG-CT3-40027-1200A	lamp color	Rose golden
Power	600W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	10000H
Cooling way	Air cooling	Emitting window size	customized
UV intensity	2W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

AC220V 800W LED Ultraviolet Curing System Quartz Lens For led uv ink drying system 0

LED UV Curing System Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 20000hours .

LED UV Curing System FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
