optical lens micro spot UV glue curing lamp

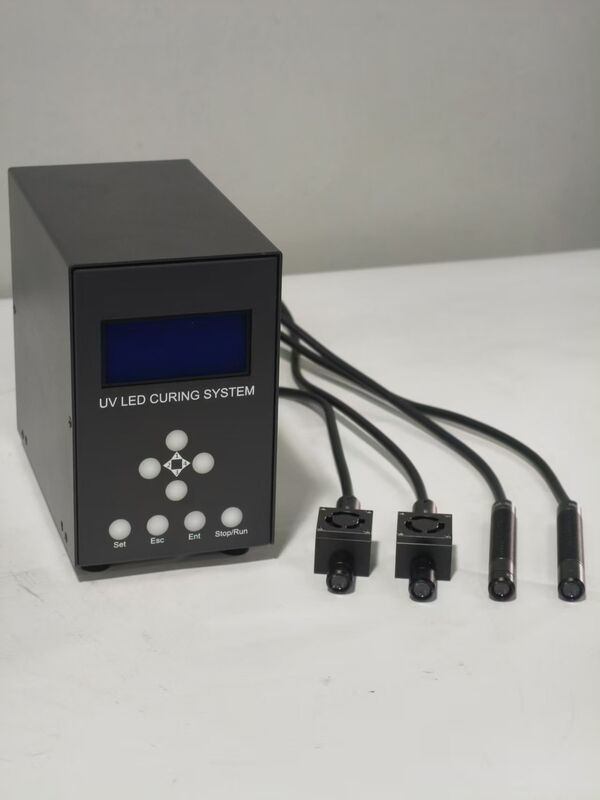

Large Image : optical lens micro spot UV glue curing lamp

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	UVLED Spot Light

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	499USD
Packaging Details:	Wooden case
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C
Supply Ability:	10 SET/DAY

Contact Now

optical lens micro spot UV glue curing lamp

Description

Control Method:

PLC/Switch Signal/ Level

Warranty:

One Year

Wavelength:

365/385/395/405nm(optional)

Application:

Precision Curing

Highlight:

UV glue curing lamp

optical lens UV glue curing lamp

micro spot UV glue curing lamp

UV LED Spot Curing System for Optical Fiber Component Assembly

Product Overview

The UV LED spot curing system delivers stable, high-intensity UV energy through multiple independently controlled channels, enabling fast and repeatable curing of UV adhesives, coatings, and encapsulation materials. The system can be equipped with up to four independent curing heads, offering exceptional flexibility for automated production lines, laboratory testing, and precision assembly processes.

Technical Specifications

Parameter	Specification	Parameter	Specification
Light Source	UV LED	Wavelength	365nm / 385nm / 395nm / 405nm
Control Channels	1-4 Independent Channels	Output Intensity	Adjustable
Operation Mode	Continuous / Timer	Cooling Method	Air Cooling
Control Interface	LCD Display	Input Voltage	AC 100-240V, 50/60Hz
LED Lifetime	>20,000 Hours	External Control	PLC / I/O Trigger

Applications

Electronics Manufacturing

Medical Device Manufacturing

Optical & Photonics Industry

FAQ

Q1: What is a UV LED Spot curing system?

A1: UV LED Spot curing system is a precision curing device that delivers concentrated UV light through a small spot, ideal for curing UV adhesives, coatings, and encapsulants in electronics, medical devices, and optical assemblies.

Q2: What wavelengths are available for UV LED point light sources?

A2: Common wavelengths include 365nm, 385nm, 395nm, and 405nm. The best wavelength depends on the UV adhesive, coating, or ink being used.

Q3: What industries use UV LED Spot curing systems?

A3: UV LED Spot curing systems are widely used in electronics manufacturing, medical device assembly, semiconductor packaging, optical bonding, and laboratory research.

Q4: Can the UV intensity be adjusted?

A4: Yes. The UV intensity and exposure time can be independently adjusted to meet different curing process requirements.

Product Features

Multi-Channel Independent Control

Each UV curing head can be programmed individually for:

Output intensity
Exposure time
Trigger mode
Operating sequence

This allows multiple curing processes to run simultaneously.

High Irradiance Output

Provides concentrated UV energy exactly where needed. Suitable for:

UV adhesive bonding
Optical alignment
PCB encapsulation
Medical catheter assembly
Camera module manufacturing

Intelligent LCD Control Interface

The front-panel LCD display allows operators to:

Monitor channel status
Adjust intensity levels
Set curing time
Store process parameters

Simple operation reduces setup time and improves production consistency.

Low Heat Generation

Compared with traditional mercury lamps, UV LED technology significantly reduces thermal stress on sensitive components. Ideal for:

Plastic parts
Optical lenses
Electronic assemblies
Medical components
