UV LED Spot Curing System Four Channel 365nm Precision Optical Fiber Connector Epoxy Curing 20000 Hours

Product Overview

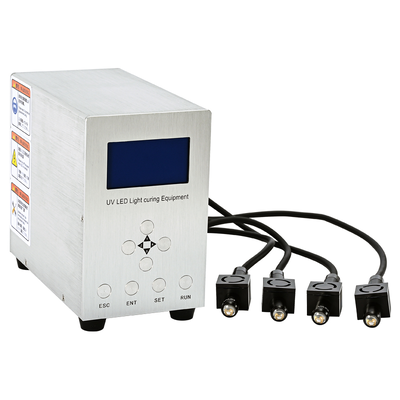

The four-channel UV LED spot curing system delivers stable, high-irradiance UV energy through four independently controlled curing heads. Each head can be programmed for output intensity, exposure time, trigger mode and operating sequence, so several curing processes run at the same time on one automated line. It is built for optical fiber connector epoxy curing, lens bonding and precision assembly where repeatability matters more than raw lamp power.

Key Features

• Four independent channels with separate intensity, timer and trigger settings
• Concentrated spot output reaching the bond area without heating the whole assembly
• Low heat generation protects optical lenses, plastic housings and coated surfaces

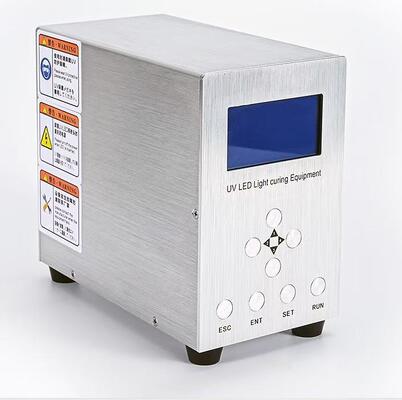

• Front LCD panel for channel status monitoring and process parameter storage
• PLC and I/O trigger interface for inline automation and multi-station control
• LED lifetime above 20,000 hours with air cooling, no mercury lamp replacement

Technical Specifications

Typical Applications

• Optical fiber connector and ferrule epoxy curing
• Camera module and lens bonding
• PCB component encapsulation and conformal coating
• Medical catheter and sensor assembly
• Laboratory UV adhesive testing

Why Choose This System

Traditional mercury spot lamps need warm-up time, generate broad heat load and degrade batch by batch. The UV LED spot curing system starts instantly at full intensity, keeps the spectrum narrow at 365nm and holds the same output for the whole production shift, which shortens cycle time and reduces rework on heat-sensitive parts.

Ordering Information

Tell us your adhesive wavelength, required irradiance and number of curing stations, and we will configure the channel count, light guide option and trigger cable for your line. OEM labeling and customized wavelengths are available.
