UV Curing General Purpose Plastic Bonding Adhesive Low Viscosity Low Cost Fast Cure

UV Curing General Purpose Plastic Bonding Adhesive

3325 UV Curing General Purpose Plastic Bonding Adhesive is a light yellow transparent UV adhesive offering lower cost, low viscosity with good leveling and fast curing. It provides adhesion to a variety of plastics and to inks and plating layers, making it suitable for medium to large area bonding of plastic with plastic, glass and metal, such as PMMA, PC, PVC, ABS, PS, AS and PET.

Technical Specifications

Key Features

• Lower cost for cost-sensitive projects
• Fast curing for efficient production
• Low viscosity with good leveling
• Adhesion to various plastics, inks and plating layers
• Suitable for medium to large area bonding
• Bonds plastic with plastic, glass and metal
• Works with PMMA, PC, PVC, ABS, PS, AS and PET

Applications

• Medium to large area plastic bonding
• Plastic-to-plastic bonding
• Plastic-to-glass bonding
• Plastic-to-metal bonding
• Bonding of PMMA, PC, PVC, ABS, PS, AS and PET

Operation and Curing Guide

1. Surface preparation: clean the surfaces to remove oil, dust and contaminants for maximum adhesion.
2. Dispensing: apply the adhesive evenly to the bonding area.
3. Assembly: position and join the parts, pressing to spread the adhesive and removing any excess before curing.
4. UV curing: expose the adhesive to UV light at 600 mJ/cm² until fully cured.
5. Inspection: verify a uniform bond with no whitening or bubbles.
6. Rework: gently separate bonded parts, clean the surfaces and re-apply the adhesive when repair is needed.

FAQ

Q1: What is the 3325 adhesive mainly used for?
3325 is a general purpose UV adhesive for medium to large area bonding of plastic with plastic, glass and metal, including PMMA, PC, PVC, ABS, PS, AS and PET.

Q2: Why choose 3325?
3325 offers lower cost while still providing good adhesion, low viscosity and fast curing for general purpose assembly.

Q3: Does it bond to inks and plating layers?
Yes. 3325 provides adhesion to various plastics as well as inks and plating layers.

Q4: Why is the low viscosity useful?
The low viscosity gives good leveling, so the adhesive spreads evenly across medium to large bonding areas.

Q5: What strength does it provide?
3325 has a Shore D 60 hardness, a tensile strength above 12 MPa and a shear strength of 6 MPa.

Q6: What are the storage conditions and packaging?

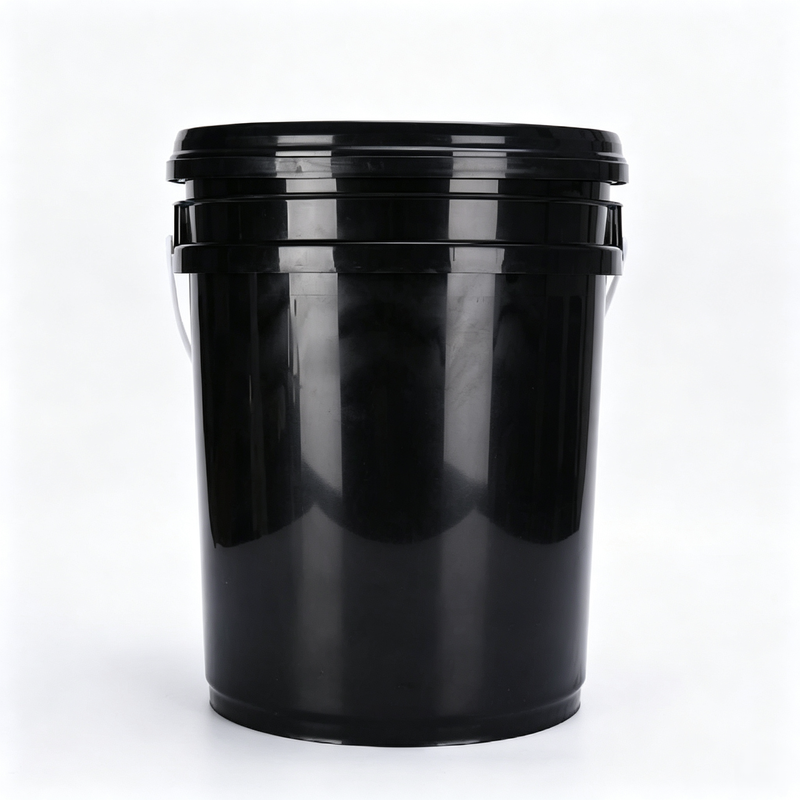

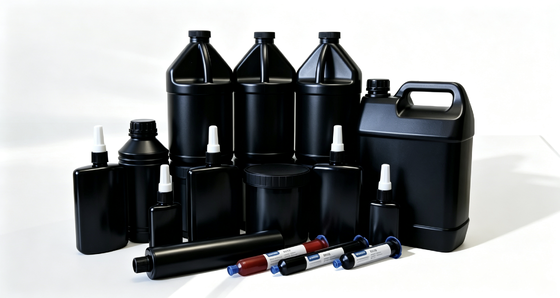

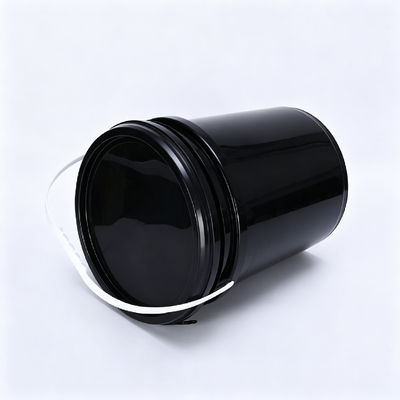

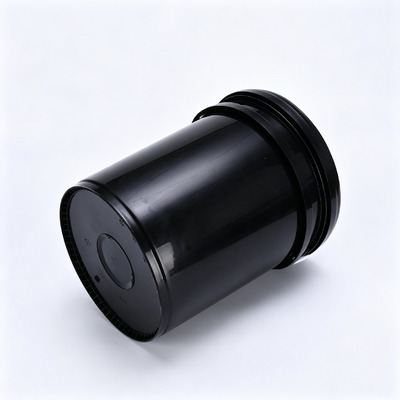

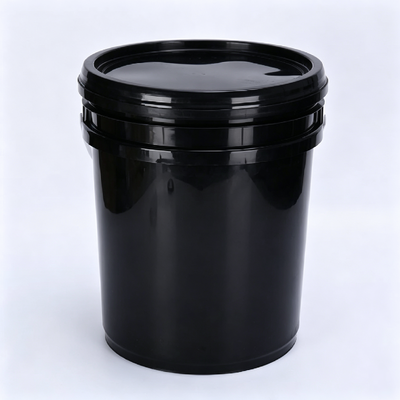

Store at 8-28°C in the original sealed container. Shelf Life is 12 months. Available in 1kg and 5kg packaging.
