Fast Curing UV Adhesive Glue High Adhesion Type-C USB Cable Solder Joint Sealing for Connector Pin Reinforcement

Fast Curing UV Adhesive Glue for Type-C USB Cable

3523 Fast Curing UV Adhesive Glue is a high thixotropic, blue or red transparent adhesive specially formulated for Type-C USB cable solder joint sealing and connector pin reinforcement. It offers high adhesion and high hardness, low shrinkage and low dielectric constant, blue color visibility for easy inspection and dispensing, and LED 3-5 second fast curing for high-efficiency production.

Key Features

• Fast curing with LED 3-5 second cure for high-efficiency production
• High adhesion and high hardness for durable solder joint sealing and protection
• Low shrinkage and low dielectric constant protect delicate connector areas
• High thixotropy with blue color visibility for easy inspection and precise dispensing
• High tensile strength of 12 MPa with 120% elongation at break
• Ideal for Type-C USB cable solder joint sealing and connector pin reinforcement

Applications

• Type-C USB cable solder joint sealing and protection
• USB Type-C connector sealing
• Connector pin reinforcement and strain relief
• Charging cable termination protection
• Electronic connector assembly protection

Technical Specifications

FAQ

Q1: What is the 3523 adhesive mainly used for?
3523 is an LED-curable UV adhesive used for Type-C USB cable solder joint sealing, connector sealing and connector pin reinforcement.

Q2: How fast does it cure?
3523 features LED 3-5 second fast curing at 600 mJ/cm², enabling high-speed production lines.

Q3: Why is the blue color visibility important?
The blue (or red) transparent color provides clear visibility of the applied area, allowing easy inspection and precise dispensing during production.

Q4: How strong is the cured adhesive?
3523 delivers high hardness of Shore D 78 with 12 MPa tensile strength and 120% elongation at break, providing tough and durable protection.

Q5: Is it suitable for high-viscosity sealing applications?
Yes. The high thixotropic viscosity of 70000±15000 mPa.s keeps the adhesive in place without sagging, ideal for sealing and reinforcement of connectors.

Q6: What are the storage conditions?

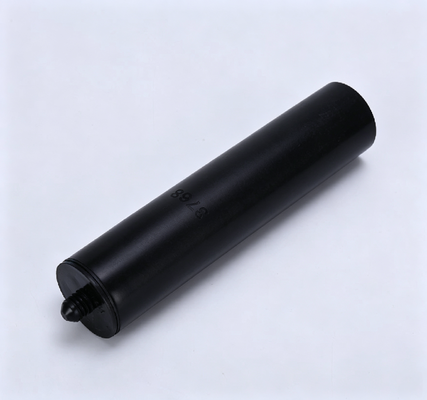

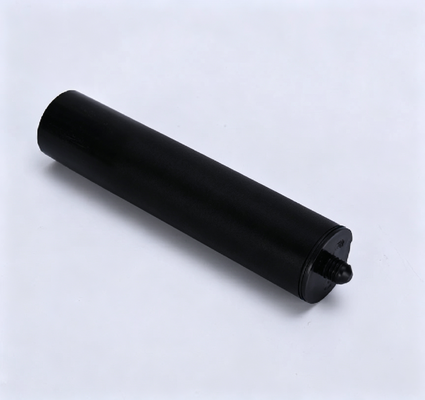

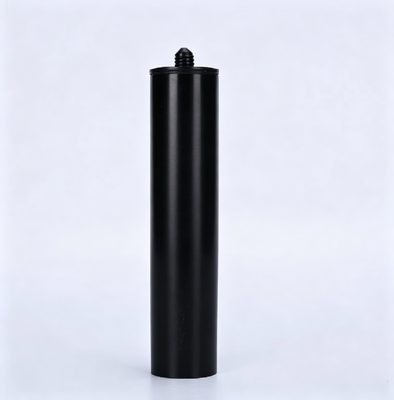

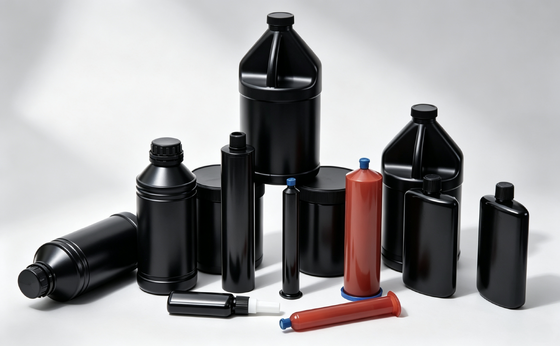

Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 30g, 50g and 300g packaging.
