UV LED Spot Curing Lamp Single Channel 365nm Silver Housing Camera Module Lens Adhesive Bonding

Product Overview

The single-channel UV LED spot curing lamp is a compact bench and inline unit that focuses 365nm UV energy on one small bond point at a time. This version uses a silver anodized aluminum housing that matches stainless steel assembly benches, resists scratches and solvent wipe-down, and keeps the same adjustable intensity, digital timer and PLC trigger input as the standard model. It suits camera module lens bonding, coil fixing and small-batch precision adhesive curing where a full multi-head system is more capacity than the process needs.

Key Features

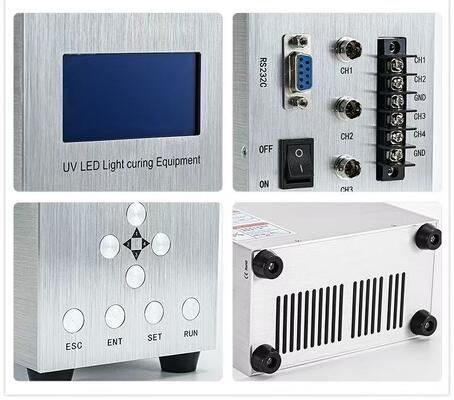

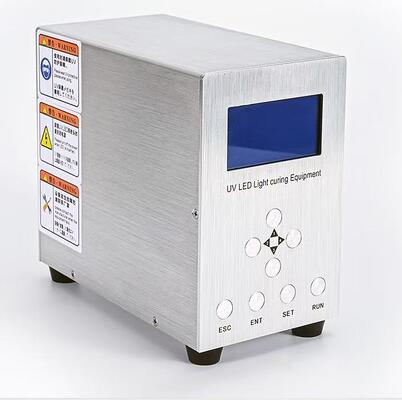

• Silver anodized aluminum housing, corrosion resistant and easy to clean with IPA
• Single focused spot output with adjustable intensity from low tack to full cure
• 365nm wavelength matched to common UV adhesives and lens bonding resins
• Digital timer with foot pedal and PLC trigger options for hands-free operation
• Low heat generation keeps lens coatings and plastic housings stable during cure
• Air cooling and LED lifetime above 20,000 hours, no mercury bulb replacement
• Compact silver body that fits cleanroom benches and semi-automatic stations

Technical Specifications

Typical Applications

• Camera module and phone lens adhesive bonding
• Voice coil motor and speaker assembly curing
• Small PCB component fixing and encapsulation
• Syringe needle and medical disposables bonding
• Repair benches and laboratory UV adhesive testing

Why Choose This Lamp

One spot, one setting, one repeatable result. The lamp holds a constant 365nm output from the first part to the last part of the shift, so operators stop adjusting exposure time by feel. The silver anodized shell does not chip like painted housings, so the unit stays presentable on customer-facing benches and in medical assembly areas. Because the energy stays on the bond point, nearby lenses and flexible circuits are not exposed to the heat load of a mercury spot lamp.

Ordering Information

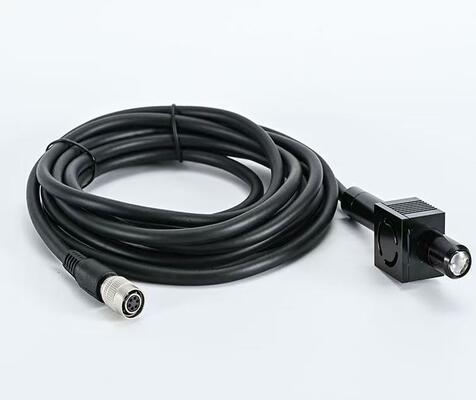

Share your adhesive cure wavelength, spot diameter and cycle time target, and we will match the light guide size, intensity range and trigger cable to your station. Silver is the standard finish for this model; black, white and OEM brand colors are available on request.
