1000W UV LED Curing Chamber 365nm 300x300mm Emitting Window for Dental Medical Adhesive Curing

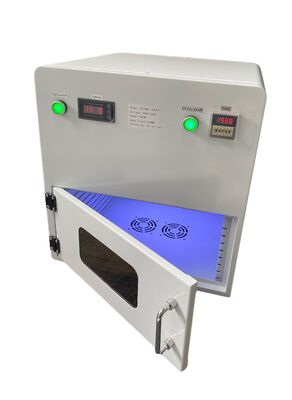

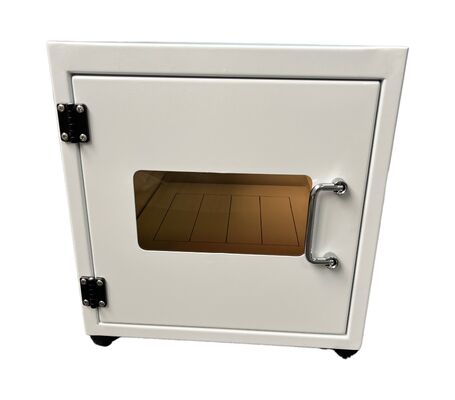

Large Image : 1000W UV LED Curing Chamber 365nm 300x300mm Emitting Window for Dental Medical Adhesive Curing

Product Details:

Place of Origin:	Shenzhen, Guangdong, China
Brand Name:	CG
Certification:	CE, RoHS
Model Number:	CG-CHX-300*300mm-1000A/C

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 1800 / Set
Packaging Details:	Wooden case with shock-proof foam insert, export-grade packing
Delivery Time:	10-15 Working Days
Payment Terms:	T/T,L/C
Supply Ability:	10 Sets per Day

Contact Now

1000W UV LED Curing Chamber 365nm 300x300mm Emitting Window for Dental Medical Adhesive Curing

Description

Power:	1000W	Input Voltage:	AC 85-265V
Wavelength:	365/385/395/405nm	Emitting Window Size:	300 X 300mm
UV Intensity:	2W/cm2	Best Emitting Distance:	30-50mm
Dimming Range:	0%-100%	Cooling Method:	Air Cooling
LED Chip Brand:	LG / Seoul	Lamp And Lens Material:	Aluminium / Quartz
Lifespan:	20000 Hours	Control System:	Intelligent Touch Screen With Recipe Storage
Warranty:	2 Years	Application:	Dental Adhesive Curing, Medical Device UV Bonding
Highlight:	1000W UV LED curing chamber , 365nm UV curing chamber , 300x300mm curing chamber

1000W UV LED Curing Chamber for Dental Adhesive and Medical Device Bonding

The CG-CHX-300x300mm-1000A/C is a fully enclosed 1000W UV LED curing chamber built for dental adhesive curing and medical device assembly bonding. A 300 x 300 mm quartz emitting window delivers 2 W/cm² of uniform 365 nm UV energy, curing light-cured dental composites, orthodontic adhesives, and medical-grade UV/visible adhesives in seconds without heat damage to temperature-sensitive substrates.

Why It Works for Dental and Medical Bonding

365 nm output matched to dental composites and medical adhesives - also selectable at 385 / 395 / 405 nm for other photoinitiator systems.
Cold UV process - no infrared load, so curing does not distort polymer housings, tubing, lenses, or bonded sensor stacks.
Instant on/off - no mercury lamp warm-up or cool-down, eliminating energy drift between batches.
0-100% dimmable intensity - run low-dose tack cures followed by full cure, or ramp the profile to control shrinkage stress.
Programmable recipes with storage and production counter - every batch follows the same validated cure profile for repeatable bond strength and full traceability.

Specifications

Model	CG-CHX-300*300mm-1000A/C
Power	1000 W
Input Voltage	AC 85-265 V
Wavelength	365 / 385 / 395 / 405 nm (custom wavelengths on request)
Emitting Window Size	300 x 300 mm
UV Intensity	2 W/cm²
Best Emitting Distance	30-50 mm
Dimming	0%-100% stepless
Cooling Method	Forced air cooling
LED Chip Brand	LG / Seoul
Lamp / Lens Material	Aluminium / quartz
Lifespan	20,000 hours
Control	Intelligent touch screen: timer, intensity, recipe storage, counter, diagnostics
Housing Color	White / black
Certification	CE, RoHS
Package	Wooden case

Typical Dental and Medical Applications

Light-cured dental composites, bonding agents, and orthodontic bracket adhesives
Denture base, crown, and bridge repair bonding with UV-cure resins
Catheter, cannula, and syringe assembly bonding with UV adhesives
Medical sensor, electrode, and micro-fluidic chip encapsulation
Diagnostic device lens, filter, and optical component bonding
Sterile barrier and disposable device assembly where heat curing is not allowed

Energy and Operating Savings

1000 W LED UV delivers the drying effect of a 6000 W mercury lamp
No mercury, no ozone generation, no VOC discharge - safe for cleanroom and clinic environments
No warm-up time, so power is consumed only during the actual cure cycle
Low temperature operation suits PE film, polymer, and thin-wall component curing

Options and Support

Custom wavelengths for specific adhesive formulations, water cooling version for higher duty cycles, and OEM/ODM branding are available. Super Curing provides free sample testing and process validation - send us your adhesive datasheet and substrate samples and our engineering team will return a recommended cure profile with measured intensity and dose.

13+ years of UV LED curing experience | CE & RoHS certified | Worldwide technical support | Fast delivery on standard models
