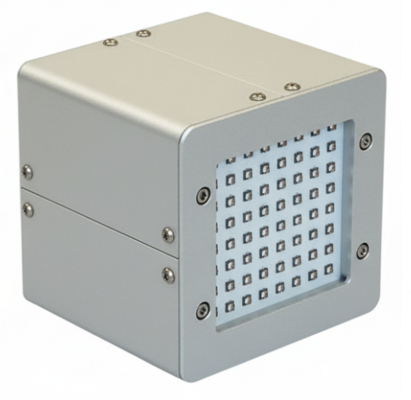

640W 18w/Cm2 uv led lamp For Ink / Vanish / Coating

Large Image : 640W 18w/Cm2 uv led lamp For Ink / Vanish / Coating

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-40027-1000A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2500-3000usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

640W 18w/Cm2 uv led lamp For Ink / Vanish / Coating

Description

Keyword:	UV LED Lamp	Power:	1000W
Input Voltage:	AC85-265V	Wave Length:	395nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case
Highlight:	640W UV LED curing lamp , UV LED lamp for ink coating , 18w/cm2 UV LED curing equipment

640W 18w/Cm2 75*75mm Leduv Curing Lamp For Inkjet

UV LED Curing Equipment Description

"UV LED curing lamps" are a new technology that use ultraviolet radiation to rapidly and efficiently cure a variety of UV materials, such as resins, inks, varnishes, adhesives, and coatings, with outstanding performance.

UV LED Curing Equipment Datasheet

Model	CG-CT3-40027-1500A	lamp color	Rose golden
Power	1500W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV LED Curing Equipment Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low-temperature curing for PE and film inks, preventing material deformation. .
Long lifespan, 20000hours .

640W 18w/Cm2 uv led lamp For Ink / Vanish / Coating 0

640W 18w/Cm2 uv led lamp For Ink / Vanish / Coating 1

UV LED Curing Equipment FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
