High Intensity 18W/cm² Water-Cooled UV LED Curing Light with 2700W Power for Industrial Applications

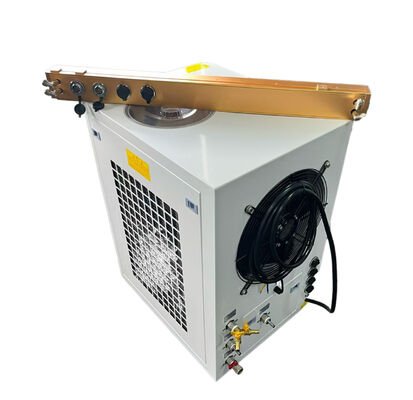

Large Image : High Intensity 18W/cm² Water-Cooled UV LED Curing Light with 2700W Power for Industrial Applications

Product Details:

Place of Origin:	China
Brand Name:	CG
Certification:	CE*RoHS
Model Number:	CG-CT3-72027-2700A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	2500-3000usd 1 set
Packaging Details:	Wooden case
Delivery Time:	10-15 Working days
Payment Terms:	L/C,T/T
Supply Ability:	10 SET/DAY

Contact Now

High Intensity 18W/cm² Water-Cooled UV LED Curing Light with 2700W Power for Industrial Applications

Description

Keyword:	UV LED Curing Equipment	Power:	2700W
Input Voltage:	AC85-265V	Wave Length:	395nm
Cooling Way:	Water Cooling	UV Intensity:	18W/CM2
Warranty:	2 Years	Package:	Wooden Case

High Intensity Water-Cooled UV LED Curing Light Source Lamp for Inkjet Printer, Coating and Curing Adhesive

Industrial Water-Cooled UV LED Curing System

Designed for high-speed manufacturing, our Industrial Water-Cooled UV LED Curing System delivers exceptional UV intensity, excellent thermal stability and reliable curing performance for demanding production environments.

Combining a high-power UV LED irradiation head, intelligent controller and industrial water chiller, the system ensures stable UV output during continuous 24/7 operation while reducing energy consumption and maintenance costs.

Ideal for replacing conventional mercury UV lamps in modern production lines.

Technical Specifications

Model	CG-CT3-72027-2700A	Lamp Color	Rose Golden
Power	2700W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV Ink/Varnish/Coating/Adhesive Curing	Life Span	20,000 Hours
Cooling Method	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/cm²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

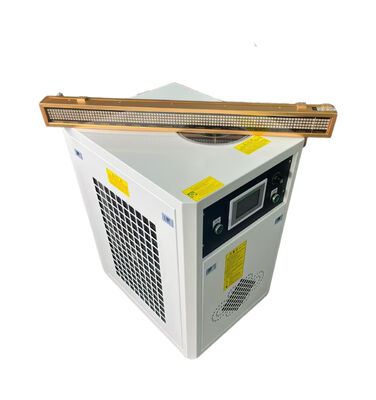

Product Images

Key Advantages

Peak irradiance up to 18W/cm²

Continuous 24/7 operation

Intelligent touch screen control

Stable water cooling system

Instant ON/OFF

No mercury, no ozone

Low heat radiation

Up to 20,000 hours LED lifetime

Energy saving compared with traditional UV lamps

OEM & ODM customization available

Intelligent Touch Screen Control

The integrated control cabinet provides a simple and intuitive operating experience with comprehensive functions including:

Touch screen operation
Digital power adjustment
Real-time system monitoring
UV intensity adjustment
Water cooling monitoring
Fault alarm protection
External signal control
PLC integration

Perfect for automated production lines.

Typical Applications

Printing Industry

Flexographic Printing
Offset Printing
Screen Printing
Digital Inkjet Printing
Label Printing
Packaging Printing

Industrial Coating

Wood Coating
Plastic Coating
Metal Coating
Decorative Coating
Protective Coating

Electronics Manufacturing

PCB Assembly
Camera Module Bonding
Sensor Packaging
Connector Sealing
Semiconductor Packaging

Adhesive Bonding

Glass Bonding
Optical Lens Assembly
Medical Device Manufacturing
Display Bonding
Automotive Electronics

Frequently Asked Questions

Is the irradiation size customizable?

Yes. Both the irradiation length and emitting window size can be customized according to your production requirements.

Can this system replace mercury UV lamps?

Yes. It is designed as a high-efficiency replacement for conventional mercury UV curing systems in printing, coating and adhesive applications.

Does the system support continuous production?

Yes. The industrial water cooling system ensures stable UV output during continuous 24/7 operation.

Which wavelength should I choose?

365nm — Optical and medical adhesives
385nm — Specialty coatings
395nm — UV inks, coatings and printing
405nm — UV resin and electronics

What's your LED brand?

LG/Seoul

What's the material of lamp and lens?

Aluminium / Quartz

What's the cooling way for the LED UV curing system?

Water or air cooling

Can the UV intensity be changed?

Yes, the UV intensity is changeable from 0%-100%
