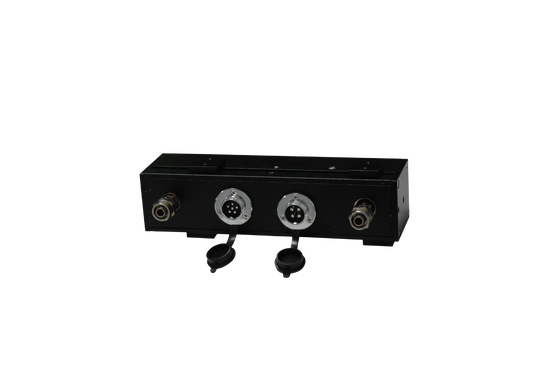

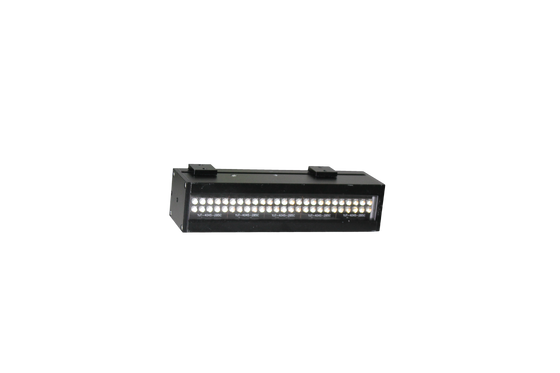

Industrial UV LED Curing System for UV Base Coat & Clear Lacquer Industrial Coating

Upgrade conventional UV curing equipment with a high-performance Industrial UV LED Curing System engineered for UV base coats, clear lacquers, UV varnishes and protective coatings.

Designed for continuous industrial production, this water-cooled UV LED system delivers controlled UV energy at 365nm, 385nm, 395nm or 405nm, helping manufacturers achieve fast polymerization, consistent surface performance and improved process control.

With 0–100% adjustable UV intensity, instant ON/OFF operation, low thermal impact and up to 20,000 hours of LED lifetime, the system is designed for integration into automated coating, finishing and manufacturing lines.

UV base coats and clear lacquers are often used to improve:

• Surface appearance
• Gloss
• Scratch resistance
• Chemical resistance
• Surface hardness
• Weather resistance
• Protection against moisture and contamination
• Adhesion between coating layers

The curing system provides controlled UV exposure to initiate photopolymerization of compatible UV-curable coatings.

For production environments where coating consistency is critical, UV LED technology provides precise control over wavelength, irradiance and exposure time.

The result is a more controllable curing process from one production cycle to the next.

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and VOC discharge.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink cuing .
5. Long lifespan, 20000hours .

Suitable for compatible UV coatings used on:

• Interior trim
• Decorative panels
• Plastic components
• Instrument panels
• Automotive switches
• Headlamp components
• Decorative automotive parts

UV-curable coatings are widely used in automotive and industrial applications where rapid processing and durable surface properties are required.

Ideal for:

• Wood panels
• MDF
• Flooring
• Furniture
• Cabinets
• Decorative boards
• Veneer
• Wood trim

UV LED curing can help manufacturers achieve high-speed finishing while reducing thermal impact on the substrate.

Suitable for compatible UV coatings applied to:

• ABS
• PC
• PMMA
• PVC
• Plastic housings
• Decorative plastic components
• Consumer products

Applications can include:

• Metal components
• Decorative metal parts
• Industrial housings
• Appliance components
• Hardware
• Protective coatings

Yes. It is designed for compatible UV-curable clear lacquers and coatings. The appropriate wavelength and UV dose should be determined according to the coating formulation.

Yes. The system can be used for compatible UV base coats and primers, including applications requiring intermediate or final curing.

365nm, 385nm, 395nm and 405nm are available. The best wavelength depends on the photoinitiator and formulation used in your coating.

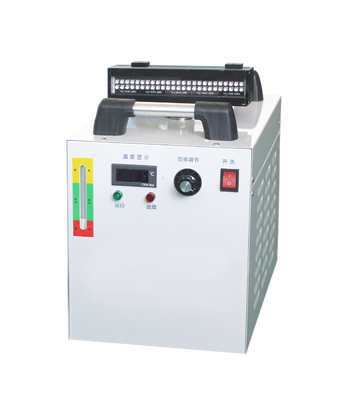

For high-power continuous UV LED curing, water cooling provides effective thermal management and stable operation. Lower-power configurations may use air cooling.

Yes. The system supports 0–100% UV intensity adjustment.

Potentially, if the UV coating is compatible with LED wavelengths and the required UV dose can be achieved. We recommend a curing test before replacement.

The standard configuration can reach up to 18 W/cm². The actual output depends on wavelength, optical configuration and operating conditions.

The LED module is designed for up to 20,000 hours under suitable operating conditions.

Yes. The emitting window and curing width can be customized according to your production line.

Yes. OEM integration is supported, including mechanical mounting, cooling configuration, control interface and curing-zone design.
