3311-2M Medical UV Adhesive for Anesthesia Masks

3311-2M is a medical-grade UV light-curing adhesive specially formulated for precision plastic-to-plastic bonding in medical devices. Featuring low viscosity, rapid curing, high bond strength, and superior flexibility, it creates a durable and reliable seal for anesthesia masks, oxygen masks, and tubing components under operational stress.

Key Features

Low Viscosity & Excellent Flowability: Low viscosity enables smooth flow and precise penetration, ideal for automated dispensing systems.

High Bond Strength & Superior Flexibility: Provides strong structural integrity combined with high flexibility to absorb shock and mechanical stress.

Rapid UV Curing: Cures within seconds under UV irradiation at 400 mJ/cm², significantly improving production throughput.

Optimized Plastic-to-Plastic Adhesion: Engineered specifically for seamless bonding between medical-grade plastic substrates.

Optically Clear Finish: Cures to a high-transparency film, ensuring clean aesthetic bond lines for quality control.

Medical Grade Compliance: Formulated to meet strict biocompatibility and assembly standards for medical devices.

Applications

Anesthesia and oxygen mask assembly and structural bonding

Medical catheter, tubing, and connector joining

Precision bonding for flexible and semi-rigid plastic medical components

Disposable medical device assembly requiring fast cure and high flexibility

Medical Grade Compliance: Formulated to meet strict biocompatibility and assembly standards for medical devices.

Technical Specifications

Packaging & Storage

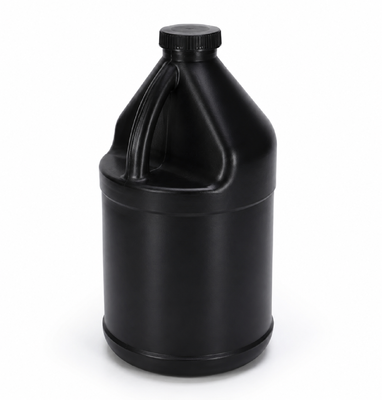

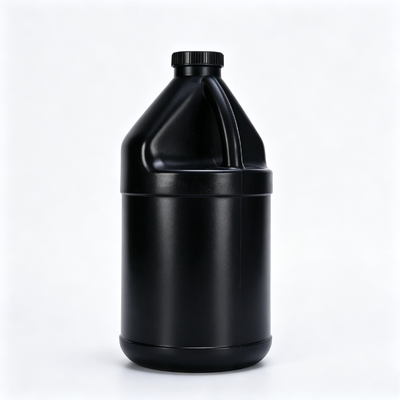

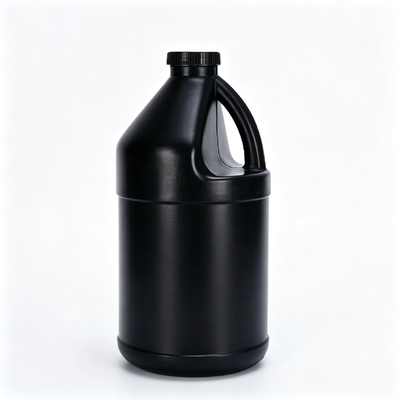

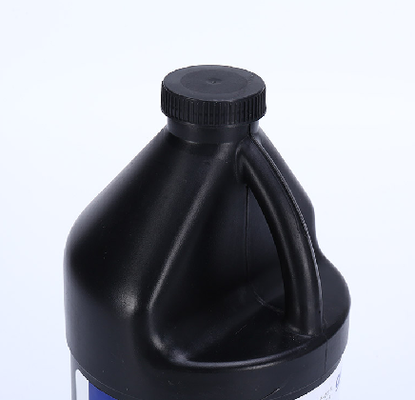

• Standard Packaging: 1 kg per bottle.

• Storage Conditions: Store in a cool, dry place at 8–28°C away from direct sunlight and light sources.

• Customization: OEM formulations, tailored viscosity grades, and custom packaging options (e.g., syringes or bulk containers) are available upon request.

Frequently Asked Questions (FAQ)

Q1: What is the curing speed of 3311-2M UV adhesive?

A: It cures within seconds upon exposure to UV light at 400 mJ/cm². Actual cure speed depends on light intensity, wavelength, and joint layer thickness.

Q2: Which substrates are compatible with this adhesive?

A: It is specially formulated for plastic-to-plastic substrates, including medical-grade plastics used in anesthesia masks, respiratory masks, and flexible tubing systems.

Q3: What are the performance advantages of Shore D 55 hardness?

A: A hardness of Shore D 55 offers an optimal balance of structural rigidity and flexibility. Combined with a 14 MPa tensile strength, it prevents joint failure under repeated flexing or pressure.

Q4: What are the storage requirements and shelf life?

A: The shelf life is 12 months when stored in unopened containers at 8–28°C in a light-shielded environment. Reseal tightly after each use.

Q5: Is this adhesive suitable for automated dispensing equipment?

A: Yes. Its low viscosity of 300 ± 100 mPa·s guarantees consistent flow rates and high precision in automated dispensing production lines.
