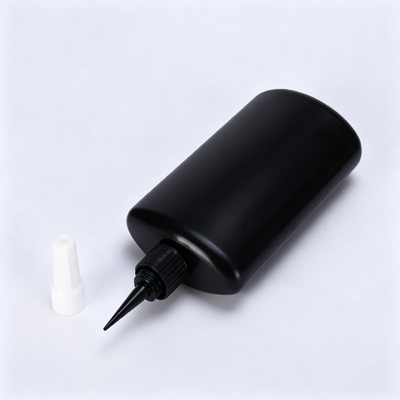

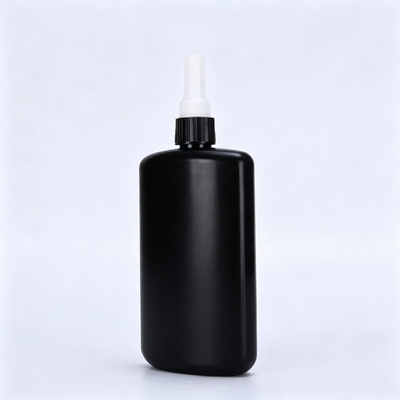

UV Odorless Conformal Coating Fast Curing LED Moisture Thermal Cure for PCB Solar Panel 3100D

Product Overview

UV Odorless Conformal Coating

3100D is an odorless UV conformal coating designed for protective coating of PCB circuit boards, solar panels and other electronic assemblies. It cures fast with selectable LED UV, UV moisture and UV thermal cure systems, provides good adhesion to PCB substrates, plastic, glass and metal, and offers excellent anti-yellowing, moisture and chemical resistance. An optional blue fluorescence version makes coating coverage inspection quick and easy.

Key Features

• Fast curing, selectable cure systems - choose LED UV, UV moisture or UV thermal curing to match your production line; shadow areas can be fully cured by secondary moisture or heat cure
• Odorless formulation - low odor during application and curing for a better working environment
• Broad adhesion - good adhesion to PCB substrates, plastic, glass and metal surfaces
• Optional blue fluorescence - coating coverage is easy to inspect under UV light for quality control
• Excellent anti-yellowing, moisture and chemical resistance - long-term reliable protection of coated assemblies
• Proven electronics protection - suitable for conformal coating of PCB circuit boards, solar panels and more

Technical Specifications

Product Applications

3100D is a versatile conformal coating for moisture, dust and chemical protection of electronic assemblies. Typical applications include:

• PCB circuit board coating - conformal coating protects PCBs from moisture, humidity, dust and chemical contamination in service
• Solar panel protection - protective coating for solar panel circuits and components against environmental exposure
• Electronic assembly coating - suitable for coating assembled boards, modules and sensitive electronic parts
• Shadow-area curing - UV moisture and UV thermal cure options ensure areas hidden from direct UV light are fully cured
• Fluorescence inspection - blue fluorescence version allows fast, reliable coating coverage inspection under UV light
• Multi-substrate coating - good adhesion to PCB substrate, plastic, glass and metal surfaces within one assembly

Frequently Asked Questions

1. What is 3100D mainly used for?
   It is an odorless UV conformal coating used to protect PCB circuit boards, solar panels and electronic assemblies from moisture, dust and chemicals, extending service life and reliability.
2. Which curing options does 3100D support?
   3100D supports selectable LED UV, UV moisture and UV thermal cure systems. The UV cure provides fast initial curing, while moisture or thermal secondary cure ensures shadow areas not reached by UV light are fully cured.
3. Which substrates can 3100D coat?
   It offers good adhesion to PCB substrates, plastic, glass and metal, making it suitable for mixed-material electronic assemblies.
4. How does the blue fluorescence help?
   The optional blue fluorescence version allows operators to inspect coating coverage quickly and accurately under UV light, improving quality control.
5. Is 3100D odorless and durable?
   Yes, it features an odorless formulation with excellent anti-yellowing, moisture and chemical resistance, plus a dielectric strength of 22 kV/mm for reliable electrical insulation.
6. How should 3100D be stored and what is its shelf life?
   Keep the container sealed and store at 8-28°C in a cool, dry place away from direct sunlight and UV sources. Under proper storage conditions, the shelf life is 12 months. Available in 1kg and 5kg packages.

Packaging & Storage

Available in 1kg and 5kg packages. Store in a sealed container at 8-28°C, away from direct sunlight and UV exposure. Shelf life: 12 months.
