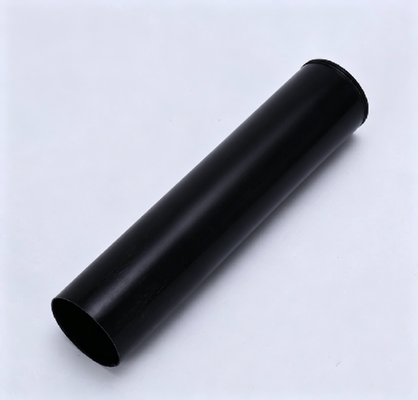

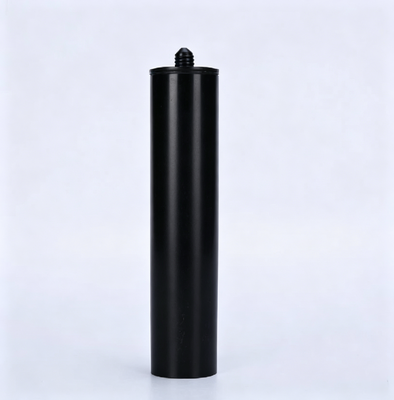

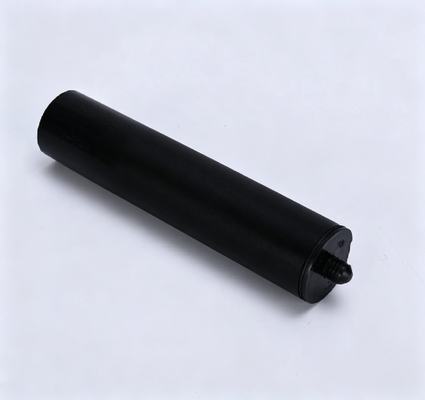

3526 UV Curing Chip Fixing Adhesive High Adhesion Flexible Low Shrinkage LED Fast Cure Corner Bonding

UV Curing Chip Fixing Adhesive

3526 UV Curing Chip Fixing Adhesive is a transparent black, LED-curable adhesive specially formulated for chip corner bonding and component underfill fixing. It offers high adhesion with excellent flexibility, low shrinkage and low dielectric constant, high thixotropy with good color visibility for easy dispensing, and LED 3-5 second fast curing, delivering reliable fixing and protection for sensitive electronic components.

Key Features

• High adhesion with excellent flexibility for reliable chip fixing
• Low shrinkage and low dielectric constant protect sensitive components
• High thixotropy with good color visibility for easy and precise dispensing
• LED 3-5 second fast curing for high-efficiency production
• Transparent black appearance for clean finished look and easy inspection
• High dielectric strength of 20 kV/mm for insulation protection

Applications

• Chip corner bonding (four-corner fixing) on PCB assemblies
• Component underfill and bottom fixing
• High-speed LED curing assembly lines
• Fixing of sensitive electronic components requiring low stress
• Protection of chips and components in consumer electronics

Technical Specifications

FAQ

Q1: What is the 3526 adhesive mainly used for?
3526 is an LED-curable UV adhesive used for chip corner bonding and component underfill fixing, providing reliable fixing and protection for sensitive electronic components.

Q2: How fast does it cure?
3526 features LED 3-5 second fast curing at 600 mJ/cm², enabling high-efficiency production lines.

Q3: Is the cured adhesive flexible?
Yes. With Shore D 40 hardness, the cured adhesive offers excellent flexibility, helping to absorb stress and protect chips and delicate components.

Q4: Why are low shrinkage and low dielectric constant important?
Low shrinkage reduces internal stress during curing, while the low dielectric constant minimizes signal interference, making 3526 ideal for sensitive electronic applications.

Q5: What does the adhesive look like?
3526 is a transparent black adhesive with good color visibility, allowing easy inspection and precise dispensing during application.

Q6: What are the storage conditions?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 50g and 1kg packaging.
