UV Curing Wire Harness Fixing Adhesive High Thixotropic Viscosity Automatic Dispensing BGA Corner Bonding

UV Curing Wire Harness Fixing Adhesive

3169 UV Curing Wire Harness Fixing Adhesive is a high thixotropic, high viscosity adhesive specially formulated for wire harness fixing, flat cable (FFC) reinforcement, BGA corner bonding and camera module fixing. It features excellent surface drying and deep curing performance, outstanding extrusion property for automatic dispensing operations, and broad adhesion to PVC, PET, PE, PTFE, Bakelite and various other substrates.

Key Features

• High thixotropic high viscosity for sag-free and precise application
• Excellent surface drying and deep curing performance
• Outstanding extrusion property suitable for automatic dispensing operations
• Broad adhesion to PVC, PET, PE, PTFE, Bakelite and more
• High hardness of Shore D 78 with 75°C Tg for durable fixing
• High dielectric strength of 22 kV/mm for insulation protection

Applications

• Flat cable (FFC) reinforcement and strain relief
• BGA corner bonding on PCB assemblies
• Camera module component fixing
• Wire harness fixing and protection
• Automatic dispensing lines for electronic assembly

Technical Specifications

FAQ

Q1: What is the 3169 adhesive mainly used for?
3169 is a UV curing adhesive used for wire harness fixing, flat cable (FFC) reinforcement, BGA corner bonding and camera module fixing.

Q2: Is it suitable for automatic dispensing?
Yes. 3169 features high thixotropic high viscosity with outstanding extrusion property, making it ideal for automatic dispensing operations.

Q3: How is the curing performance?
3169 offers excellent surface drying and deep curing performance at 600 mJ/cm², ensuring reliable curing across different adhesive thicknesses.

Q4: What substrates does it adhere to?
3169 provides broad adhesion to PVC, PET, PE, PTFE, Bakelite and various other materials commonly used in wire harnesses and electronic assemblies.

Q5: What is the appearance of the adhesive?

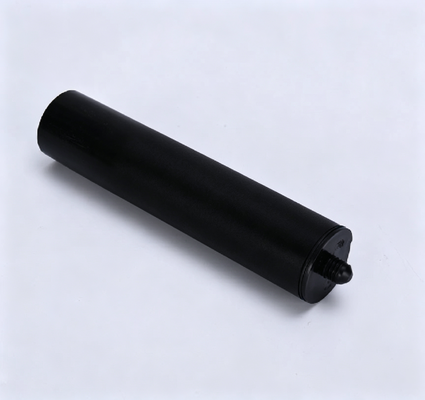

3169 is a translucent paste adhesive, allowing easy visual inspection of the applied area during production.

Q6: What are the storage conditions?
Store at 8-28°C in the original sealed container. Shelf life is 12 months. Available in 250ml and 1kg packaging.
