3166 UV Adhesive for Solder Joint Protection

3166 UV Adhesive for Solder Joint Protection
3166 UV Adhesive for Solder Joint Protection
3166 UV Adhesive for Solder Joint Protection 3166 UV Adhesive for Solder Joint Protection

Large Image :  3166 UV Adhesive for Solder Joint Protection

Product Details:
Place of Origin: China
Brand Name: SuperCuring
Certification: CE
Model Number: 3166 UV Adhesive
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: 49.9USD

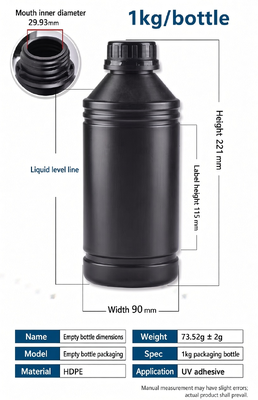

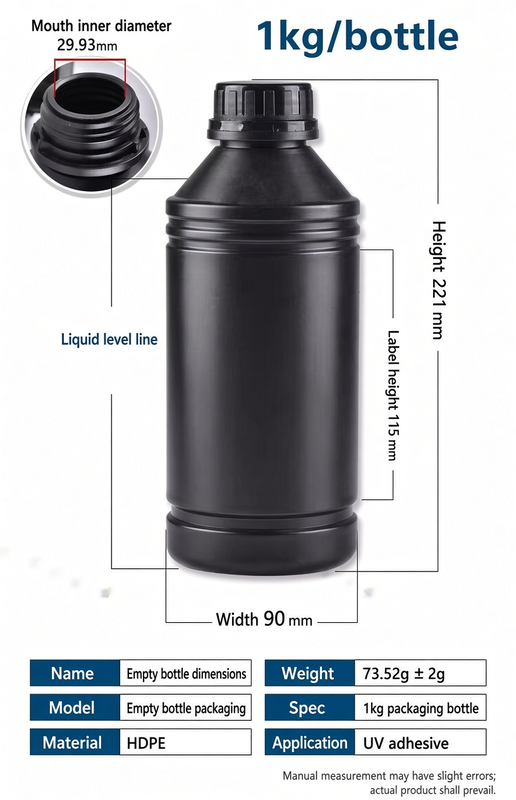

Packaging Details: 1 kg HDPE Bottle
Delivery Time: 5-8working days
Payment Terms: L/C,T/T
Supply Ability: 100units/day
Contact Now

3166 UV Adhesive for Solder Joint Protection

Description
Refractive Index: 1.51-1.625 Curing Condition: 600 MJ/cm² (UV)
Temperature Resistance: -50°C To 150°C Substrates: PCB, Plastic, Glass, Metal
Appearance: Clear Or Colored Liquid Cure Condition: 1200 MJ/cm2
Dielectric Constant: Low Thixotropy: High, Good Visibility
Storageconditions: Store In A Cool, Dark Place Cure Options: LED UV, UV Moisture, UV Thermal
Silicone Content: Silicone Free Applicationmethod: Dispensing, Brushing, Or Spraying
Elongation At Break: 150% Toxicity: Low VOC, Generally Safe When Cured
Weight: 1Kg
Highlight:

3166 UV adhesive solder joint protection

,

UV cure adhesive solder joint

,

3166 UV cure adhesive

3166 UV Adhesive for Solder Joint Protection

Product Features:

  • Medium-high viscosity

  • Excellent surface and deep curing performance

  • Thixotropic properties with excellent dispensing characteristics

  • Excellent adhesion to a wide range of materials, including plastics, metals, and glass

  • Suitable for electronic solder joint protection and reinforcement of various wires and cables

Color: Transparent Amber
Viscosity (at 25°C): 6,000 ± 500 mPa·s
Curing Condition: 400 mJ/cm²
Hardness: 78D
Glass Transition Temperature (Tg): 72°C
Dielectric Strength: 20 kV/mm
Storage Conditions: 12 months at 8–28°C
Packaging: 250 mL / 1 kg
