Low Stress High Elongation UV Curing Adhesive Description
"Low stress, high flexibility." This low stress high elongation UV curing adhesive (3578) is a transparent red, fast-curing UV adhesive specially formulated for micro speaker and headphone diaphragm fixation. It offers high adhesion and high tensile strength with low shrinkage and low stress, and features high thixotropy with red visibility for convenient dispensing. It cures rapidly under LED or UV light in just 3-5 seconds, making it ideal for delicate acoustic component assembly.
Low Stress High Elongation UV Curing Adhesive Datasheet
| Model |
3578 UV curing adhesive |

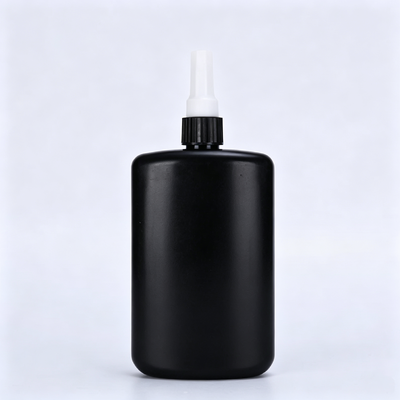

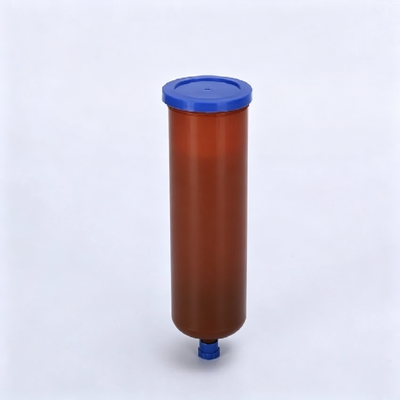

Packaging specifications |
50g / 1kg |
| Brand |
Super-curing |
Cure condition |
1000 mJ/cm² (UV / LED) |
| Application |
Micro speaker and headphone diaphragm bonding and fixation |
Viscosity (25°C) |
24000±3000 mPa·s |
| Substrates |
Metal and plastic acoustic components |
Hardness |
Shore A 40 |
| Color |
Transparent red |
Tensile strength |
6 MPa |
| Storage condition |
12 months (8-28°C) |
Elongation at break |
200% |
| Thixotropy |
High, red visible |
Shrinkage & stress |
Low |
Product Details Description
Product Applications
- Micro speaker and headphone diaphragm bonding and fixation
- Voice coil and diaphragm bonding in acoustic modules
- Speaker and receiver assembly fixing
- Bonding of metal and plastic acoustic components
- Precision fixing in miniature acoustic modules
- Fixing of fragile diaphragms that require high elongation
- Applications requiring low stress and low shrinkage
- High-throughput automated assembly with 3-5s LED curing
Precautions
- Surfaces must be clean, dry and free of oil, dust or release agents before bonding.
- Apply a suitable bead; avoid excess adhesive around diaphragm edges and acoustic openings.
- UV / LED curing requires light to reach the adhesive; shadowed areas may need additional passes.
- Confirm adhesion and cure depth on the actual acoustic components before mass production.
- Apply in a well-ventilated area. Avoid contact with skin and eyes; wear protective gloves and safety goggles.
- In case of skin or eye contact, rinse immediately with plenty of clean water and seek medical advice if irritation persists.
- Store sealed at 8-28°C in a cool, dark and dry place away from direct sunlight and UV sources, and keep out of reach of children.
FAQ
Q1: What is this low stress high elongation UV adhesive mainly used for?
It is a UV curing adhesive used for micro speaker and headphone diaphragm fixation, as well as voice coil and diaphragm bonding in acoustic modules.
Q2: How fast does it cure?
It cures rapidly under LED or UV light in about 3-5 seconds, supporting fast automated acoustic module assembly.
Q3: What adhesion and stress performance does it offer?
It provides high adhesion and high tensile strength with low shrinkage and low stress, and its high elongation of 200% protects delicate diaphragms from cracking.
Q4: Why is red visibility useful?
The transparent red color gives high visibility, making it easy to inspect the dispensed adhesive and confirm correct placement during assembly.
Q5: Is it easy to dispense?
Yes. It has high thixotropy, so it dispenses cleanly and maintains its shape without running or sagging.
Q6: What are the storage conditions and packaging?
Store sealed at 8-28°C in the original container. Shelf life is 12 months. Available in 50g and 1kg packaging.
