Camera Lens Thread Locking UV Glue Description
"Lock the thread, hold for life." This camera lens thread locking UV glue (3108) is a light yellow transparent, fast-curing UV adhesive developed for CCTV and mobile camera lens thread locking. It offers fast curing with high strength, high hardness and high temperature resistance, good thixotropic performance, and excellent aging resistance, keeping lens threads firmly fixed through vibration and temperature cycling.
Camera Lens Thread Locking UV Glue Datasheet
| Model |
3108 UV curing thread locking glue |

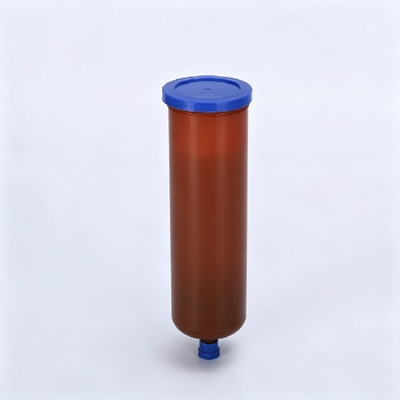

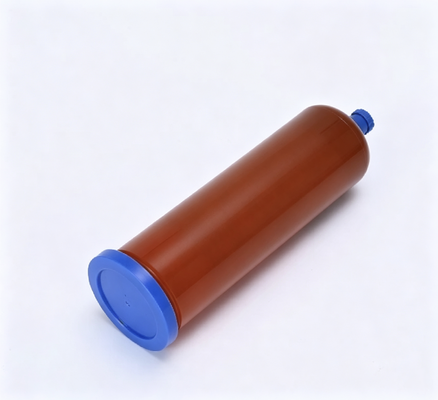

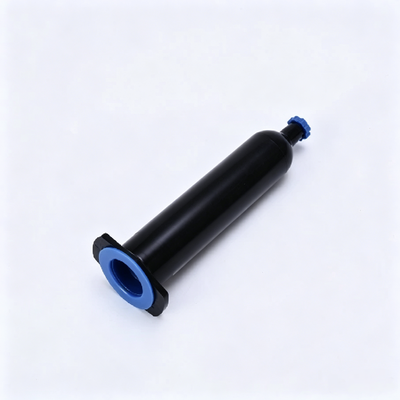

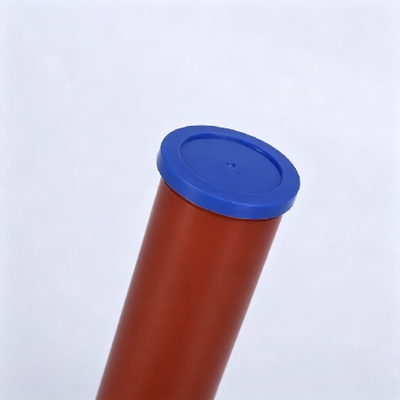

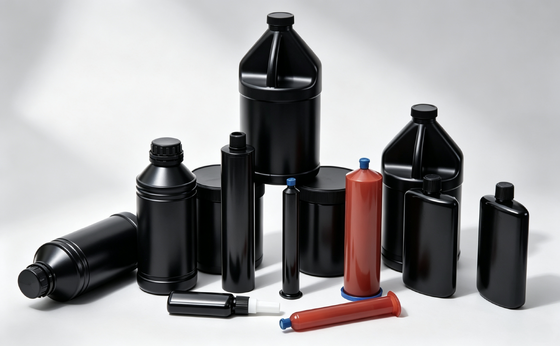

Packaging specifications |
50g / 1kg |
| Brand |
Super-curing |
Cure condition |
200 mJ/cm² (UV) |
| Application |
CCTV and mobile camera lens thread locking |
Viscosity (25°C) |
50000±10000 mPa·s |
| Substrates |
Camera lens threads, optical and metal parts |
Hardness |
Shore D 82 |
| Color |
Light yellow transparent |
Adhesion (100 grid test) |
14N |
| Storage condition |
12 months (8-28°C) |
Glass transition (Tg) |
85°C |
| Thixotropy |
Good |
Feature |
Fast cure, high strength |
Product Details Description
Product Applications
- CCTV camera lens thread locking and fixing
- Mobile phone camera module thread locking
- Thread fixing of optical and electronic components
- Bonding and securing of small threaded parts
- Camera assembly and reinforcement
- Lens barrel and holder thread securing
- Applications requiring high hardness and heat resistance
- Fast automated camera module assembly
Precautions
- Surfaces and threads must be clean, dry and free of oil, dust or release agents before bonding.
- Apply a small amount to the thread; avoid excess adhesive that could reach optical surfaces.
- UV curing requires light to reach the adhesive; shadowed threads may need additional passes.
- Confirm adhesion and cure depth on the actual camera components before mass production.
- Apply in a well-ventilated area. Avoid contact with skin and eyes; wear protective gloves and safety goggles.
- In case of skin or eye contact, rinse immediately with plenty of clean water and seek medical advice if irritation persists.
- Store sealed at 8-28°C in a cool, dark and dry place away from direct sunlight and UV sources, and keep out of reach of children.
FAQ
Q1: What is this camera lens thread locking UV glue mainly used for?
It is a UV curing adhesive used for CCTV and mobile camera lens thread locking and fixing, as well as thread fixing of optical and electronic components.
Q2: How fast does it cure and how strong is it?
It cures quickly under UV light at 200 mJ/cm² and provides high strength for reliable, long-lasting thread locking.
Q3: What hardness and heat resistance does it offer?
It features a Shore D 82 hardness and a glass transition temperature (Tg) of 85°C for high temperature resistance and dimensional stability.
Q4: Is it easy to dispense?
Yes. It has good thixotropic performance, allowing clean and controlled dispensing on threaded components without running.
Q5: What adhesion does it provide?
It achieves a 14N adhesion result in the 100 grid test, ensuring reliable fixing of threaded components.
Q6: What are the storage conditions and packaging?
Store sealed at 8-28°C in the original container. Shelf life is 12 months. Available in 50g and 1kg packaging with export-grade carton.
