Low Viscosity UV Optical Adhesive 500-1500 cP Fast Cure 3-30s Transparent for Display Screen Assembly

Low Viscosity UV Optical Adhesive for Optical Film Lamination

Low viscosity, crystal-clear bonding. This low viscosity UV adhesive is specially formulated for optical film lamination and display screen assembly. Its low viscosity allows a thin, uniform coating that spreads easily and releases air quickly, delivering a bubble-free, highly transparent optical bond. Combined with a professional UV light source, it cures in just 3-30 seconds for efficient automated production.

Datasheet

Applications

• Optical film lamination: PET, TAC and polarizer film
• Display screen assembly and module bonding
• Touch panel and cover glass lamination
• OCA / OCR optical clear adhesive replacement
• Camera module and precision lens bonding
• ITO and conductive film bonding
• Acrylic panel and glass panel assembly
• Anti-glare, anti-fingerprint and hardened film lamination

Precautions

• Perform lamination in a clean, dust-free environment; surfaces must be clean, dry and free of oil or particles.
• Low viscosity spreads quickly; apply a thin, uniform layer and control the coating amount to avoid overflow and edge contamination.
• Allow adequate deaeration to prevent air bubbles in the optical bond layer.
• UV curing requires light to reach the adhesive; UV-blocking or opaque films may not fully cure.
• Apply in a well-ventilated area. Avoid contact with skin and eyes; wear protective gloves and safety goggles.
• In case of skin or eye contact, rinse immediately with plenty of clean water and seek medical advice if irritation persists.
• Store sealed in a cool, dark and dry place away from direct sunlight, and keep out of reach of children.
• Optical performance may vary with substrate, layer thickness and UV intensity; please run a lamination test before mass production.

FAQ

Q1: What is the viscosity of this UV adhesive?
A1: It is a low viscosity grade (approximately 500-1500 cP), which allows a thin, uniform coating that spreads easily and releases air quickly for bubble-free optical bonding.

Q2: How fast does it cure?
A2: It cures in 3-30 seconds under a professional UV light source. Exact time depends on UV intensity, adhesive layer thickness and substrate.

Q3: What substrates can it bond?
A3: It is designed for optical film lamination and display assembly, bonding PET, TAC, polarizer film, glass, acrylic and similar optical substrates.

Q4: What UV light source and wavelength are required?
A4: A 365nm or 395nm UV LED curing lamp is recommended. The light must reach the bond line to activate the adhesive.

Q5: What is the packaging and minimum order quantity?

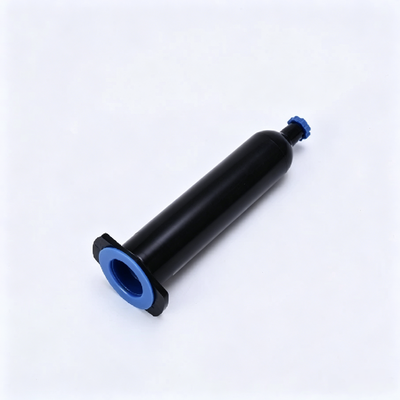

A5: Standard packaging is a 50g plastic bottle, and the minimum order quantity is 10 pieces. Custom packaging is available on request.

Q6: How should the adhesive be stored and what is its shelf life?
A6: Store in a cool, dark and dry place away from direct sunlight. Unopened shelf life is approximately 12 months; keep the bottle sealed after use.
